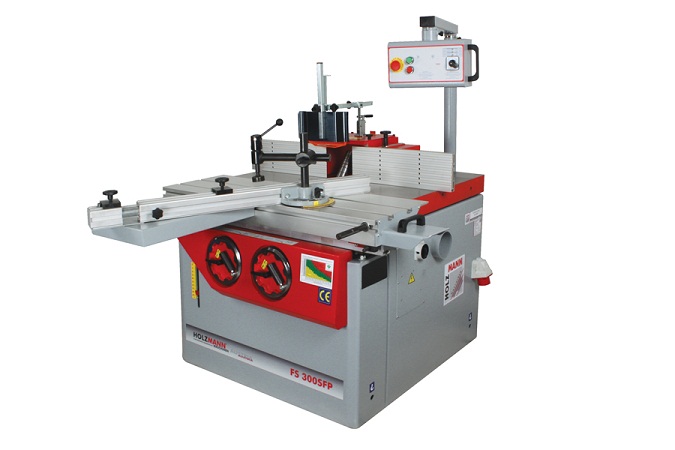

FS 300SFP frezavimo staklės

highlights

• heavy duty industrial machine with grounded cast iron table
• 6 different spindle shaper speeds

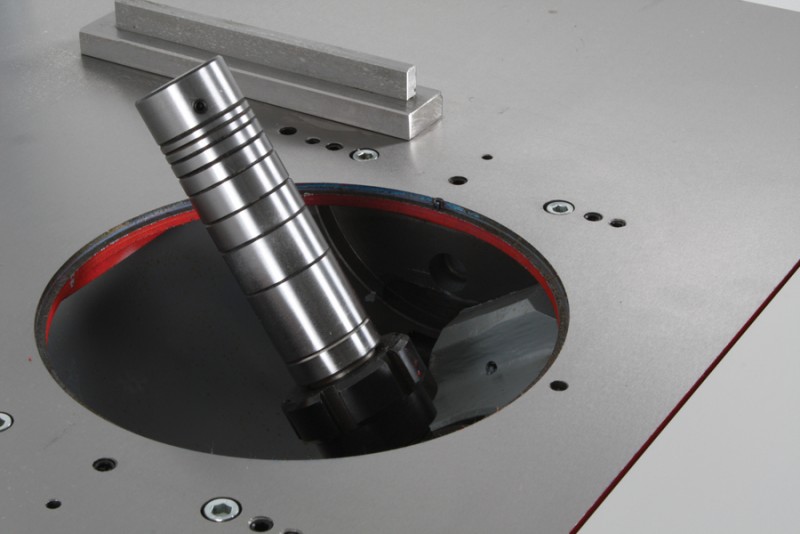

• exchangeable spindle arbor MT4 boosts work efficiency
• electronic speed indication

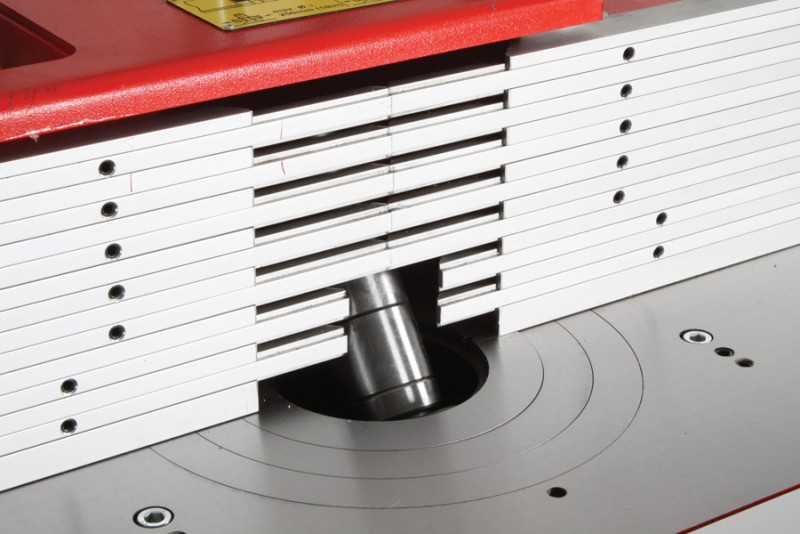

• special spindle shaper hood with integrated fence
• high quality and hardened precision steel bar guided sliding aluminium table (width 350mm)
• both hand wheels for spindle height and tilting located at the frontside of the machine for comfortable handling
• multi-bedded spindle ensures optimal working results
• dust collecting below the table as standard
• mounted device for spindle blocking as standard
• dust port diameter: 120mm

included in delivery: special integral fence, aluminium sliding table, exchangeable spindle arbor MT4, eccentric workpiece clamp, extension table with fence

technical details
motor data
motor power s1 in W 5500
motor power s6 in W 7700
voltage 400V
measurements
sliding table in mm 1150x350
suction port in mm 120 /120
table height in mm 900
table size in mm 1000x650
milling and drilling
max. tool diameter below table in mm 260
milling spindle swivel 0° +45°
max. clamping height in mm 125
spindle stroke in mm 180
milling spindle speed in min-1 3000/4000/5000/6000/8000/10000
milling spindle diameter in mm 30
table opening in mm 270
mitre fence in mm 345x155
max. tool diameter above table 300
weight
gross weight in kg 600
net weight in kg 430
packaging
length in mm 1.750
width in mm 1.300
height in mm 1.100
