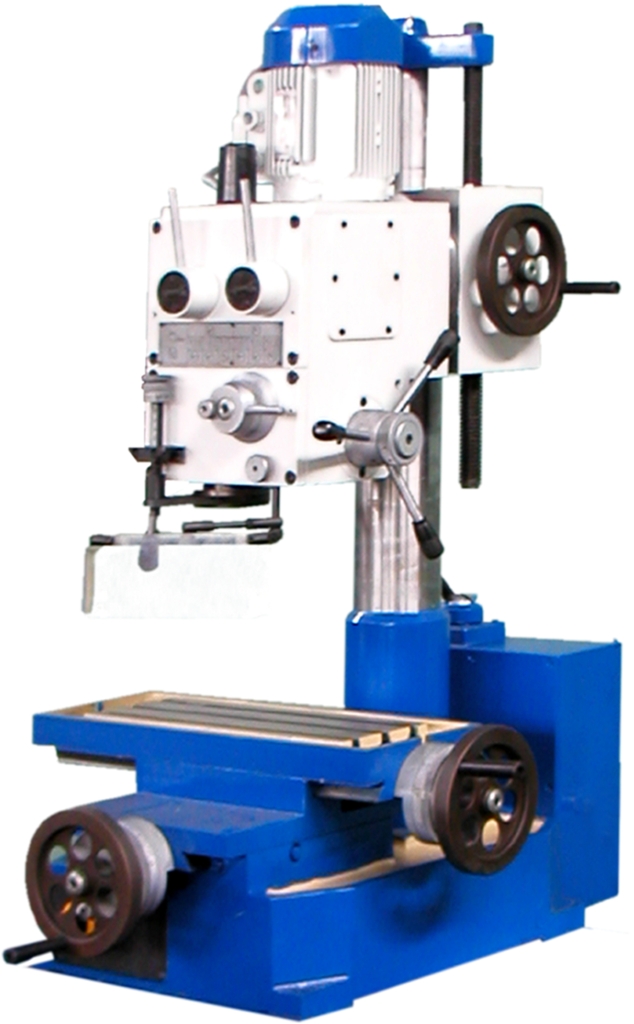

GS520 gręžimo frezavimo staklės

The largest conditional diameter face milling, mm

40

Drill capacity, mm

16

Thread cutting max, mm

М16

The highest movement of spindle, mm

60

Distance between spindle nose & base plate, mm (min/max)

400 / 0

Distance from spindle axis to column, mm

227,5

Longitudinal table travel, mm

320

Transverse table travel, mm

200

Limb division value, mm

                      longitudinal, transverse and exact vertical

                      vertical movement spindle

0,05

1

Number of spindle speeds

6

Speed range, rpm.

100…1800

Price division limb fine feed, mm

0,05

Price division limb of the  processing depth scale, mm

0,1

The spindle feed type

manual

The angle of head rotation about a horizontal axis

±90°

Morse taper size

№ 2

Size of the working surface, mm

200×500

Power of main drive motor, kW

0,75

Supply voltage, In

380 ± 38

Dimensions, mm

       length

       width

       height

825

700

1280

Weight, kg (net / gross)

275/325

Standard accessories:

-          key to control cabinet;

-          turning handle;

-          set of  transitional bushings;

-          set of wedges.

-          retention knobs

Optional accessories:

-          vice;

-          drill chuck;

-          thread-cutting chuck;

-          stand;

-          collet chuck.
