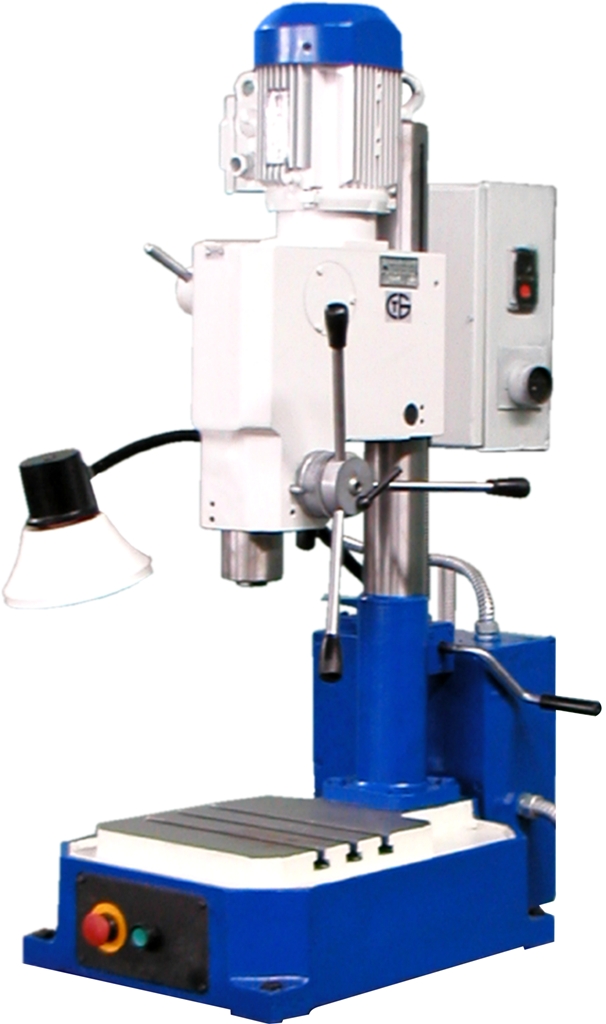

GS2112 gręžimo staklės

Model

GS2112

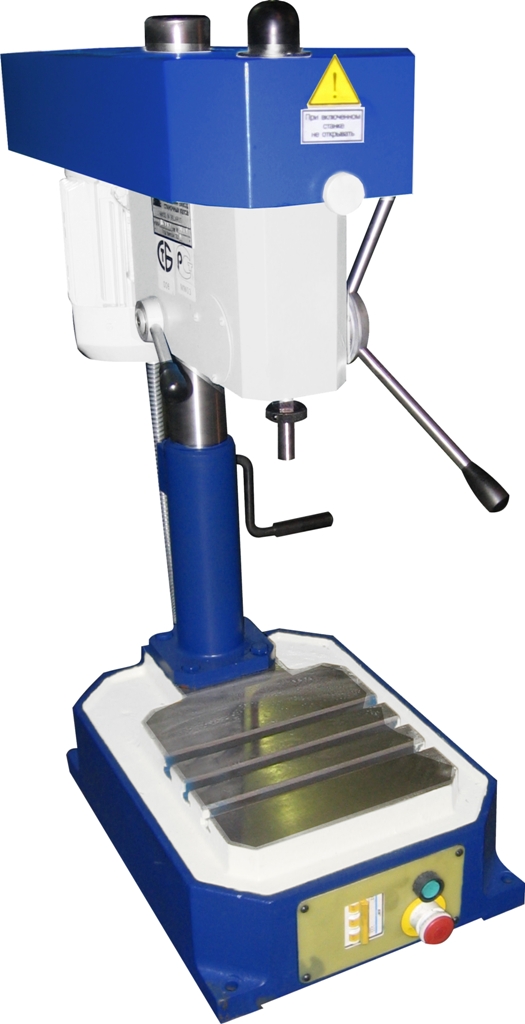

GS2116К

Drill capacity, mm

12

18

Thread cutting max, mm

-

М4…М12

Distance from spindle axis to column, mm

190

190

Distance between spindle nose & base plate, mm (min/max)

100/450

100/400

The  movement of the drilling head, mm

250

200

The highest movement of spindle, mm

100

Morse taper size

В18

№ 2

Size of the working surface, mm  (LxB)

250×250

The T-slots amount

2

Distance between T-slots,mm

100

t-slot width, mm

14 Н14

Number of spindle speeds

5

6

Speed range, rpm.

450, 800, 1400, 2500, 4500

200, 320, 560, 800 1200, 2100

Power of main drive motor, kW

0,55

0,75

Supply voltage, In

380

Dimensions, mm

       length

       width

       height

780

420

982

640

460

1260

Weight, kg (net / gross)

100 / 135

140 / 175

505

405

720

Stand  weight, kg

40

Weight with stand, kg (net / gross)

135 / 170

178 / 225

Standard accessories:

-          key to control cabinet;

-          turning handle;

-          set of  transitional bushings;

-          set of wedges.

Optional accessories:

-          vice;

-          drill chuck;

-          thread-cutting chuck;

-          stand.
