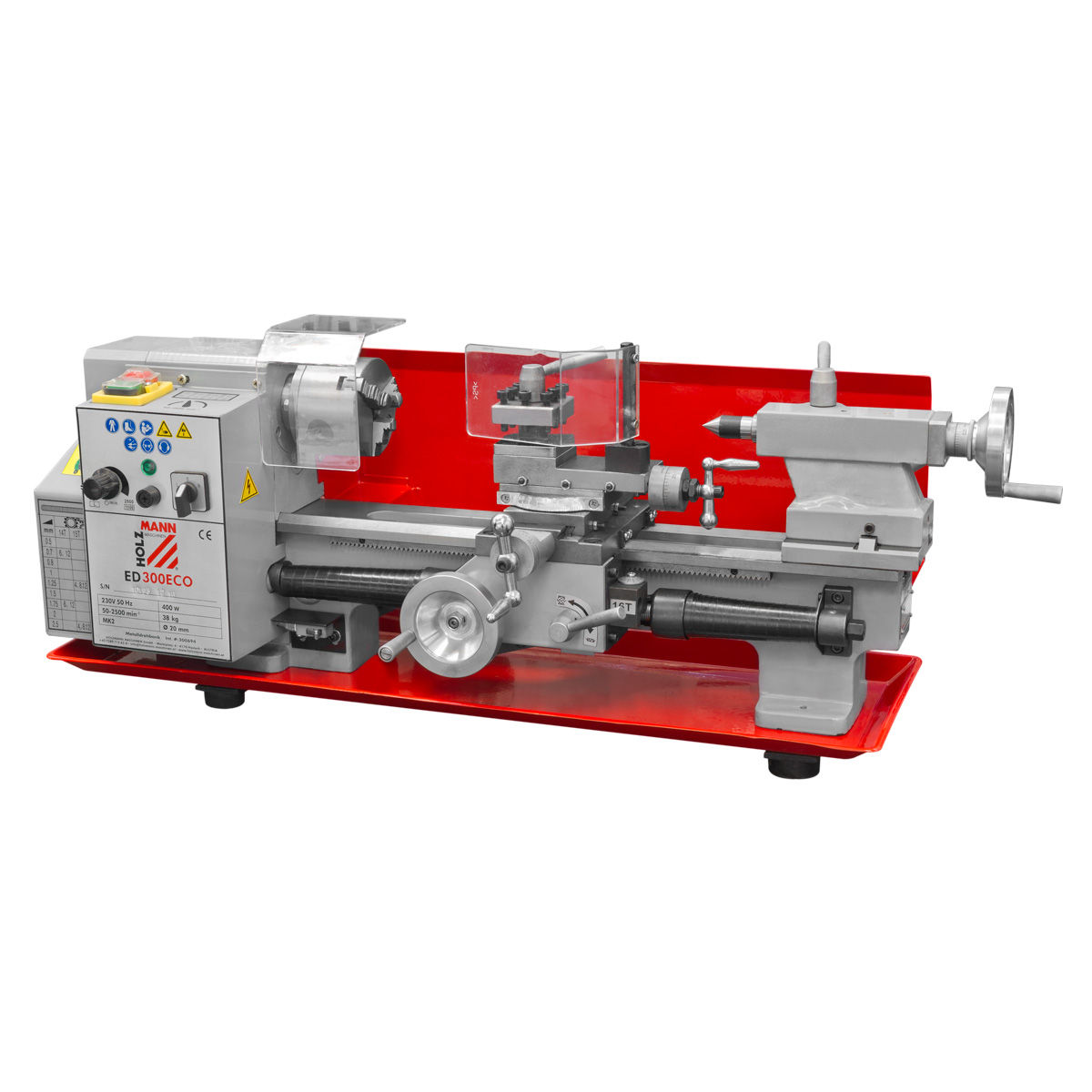

ED300ECO_230V metalo tekinimo staklės

Select Prekės kodas: ED300ECO_230V
HOLZMANN
Pristatymas 3 - 14 d.d. Svoris 48 kg
  • do it yourself model with a compact design
  • serially equipped with leadscrew for thread cutting and automatic longitudinal feed
  • induction-hardened and precision ground prismatic bed way guides
  • hardened main spindle bedded with adjustable taper roll bearings
  • high spindle centricity assures maximal turning accuracy
  • spindle speed steplessly adjustable

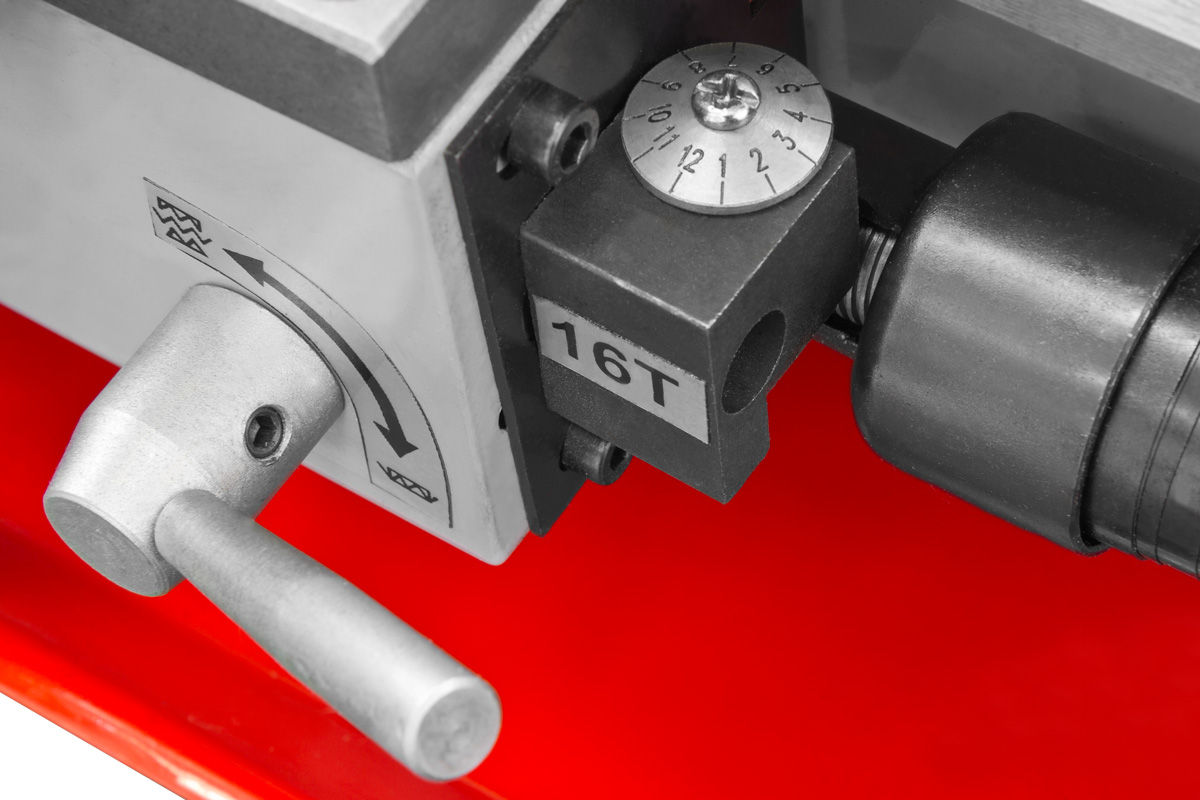

  • comes with change gears made of metal, delivering an exceptionally broad thread cutting range
  • guides conveniently adjustable via V-ledges ensuring precision for many years
  • powerful, maintenance free motor with undervoltage release
  • smooth power transmission delivers constant torque
  • tailstock can be adjusted for taper turning

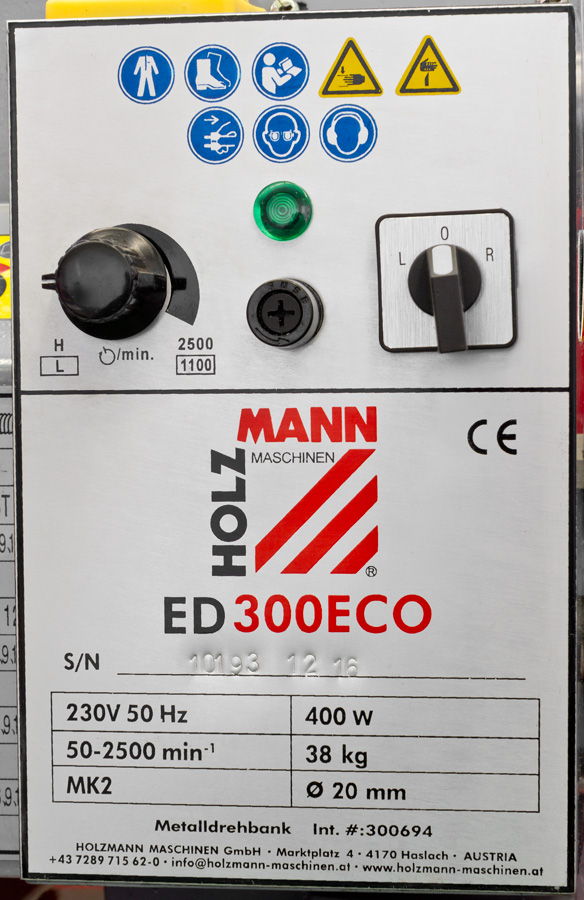

  • CW/CCW run mode

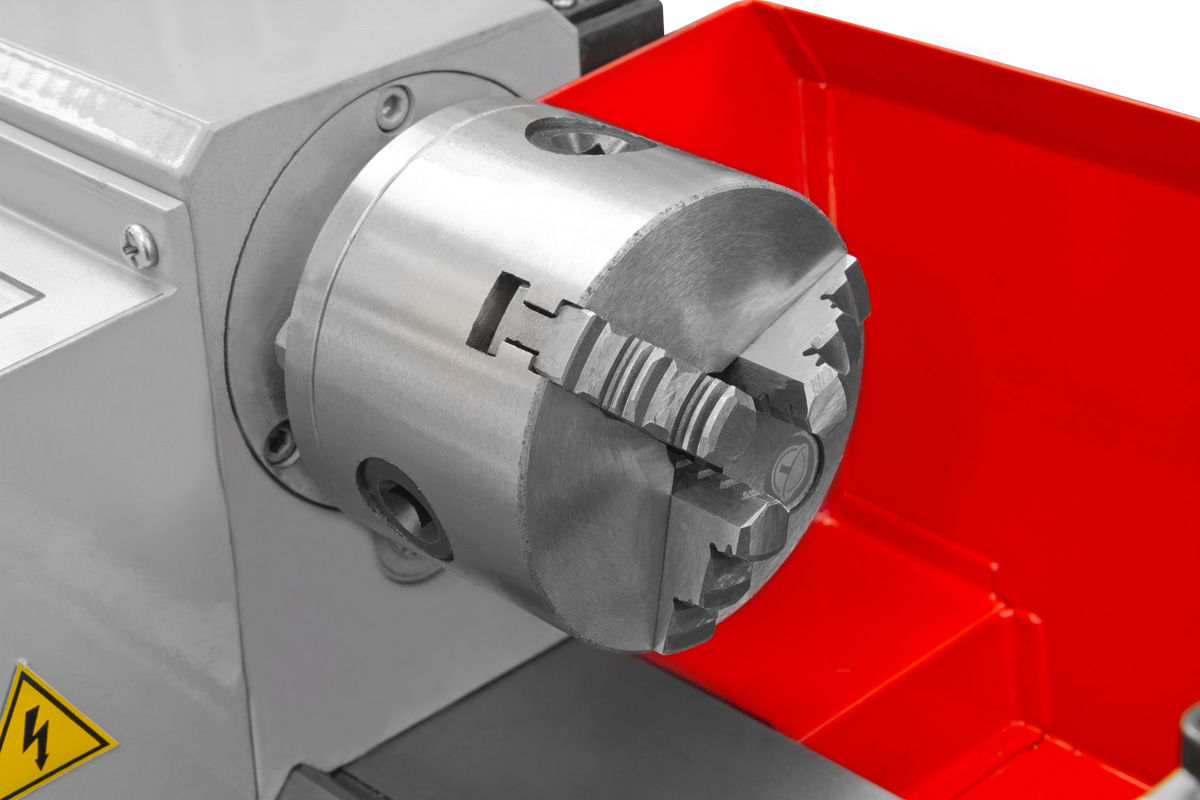

  • drill chuck Ø 80 mm

technical details

motor data
motor power s1 in W - 400

motor power s6 in W - 560

voltage - 230V 50Hz


measurements

total dimensions in mm - 760x230x254


turning machines

distance between centers in mm - 300

center height in mm - 90

max. swing over bed in mm - 180

max. swing over cross slide in mm - 105

lathe spindle speed in min-1 - 50-2500

spindle bore in mm - 20

spindle nose mount - MK3

tailstock cone - MK2

carriage travel in mm - 275

cross slide travel in mm - 70

compound slide travel in mm - 70

tailstock sleeve travel - 50

range of metric threads in mm/r - 0,5-2,5

max. tool holder cross-section - 8


weight
net weight in kg - 40

gross weight in kg - 48


packaging
packaging height in mm - 310

packaging length in mm - 770

packaging width in mm - 310
