Metalo tekinimo staklės CNC 16GS25F3

Produktas 2 iš 143
Zoom

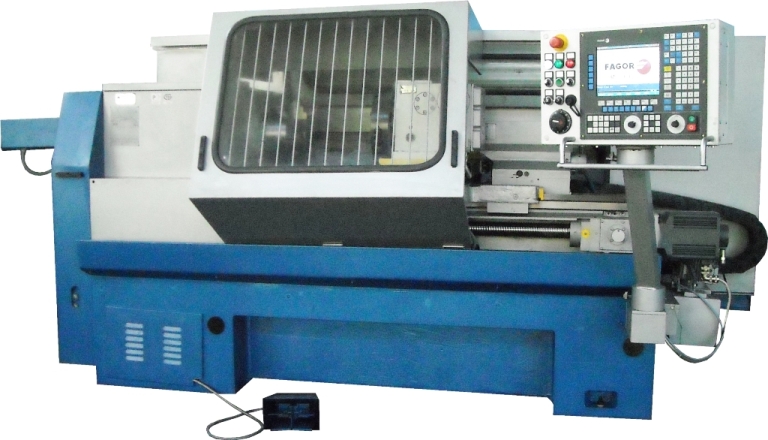

Metalo tekinimo staklės CNC 16GS25F3

Select Prekės kodas: 16GS25F3
Nebetiekiama
Sandėlyje nėra !

Name of parameters, dimension

value of parameters

1  Indicators workpiece

1.1  Swing over the bed, mm

Clamped in the chuck and extending through the hole in the spindle, mm

320

50

1.2 Swing over the cross slide, mm

200

1.3 Distance between centres, mm

1000

1.4 Maximum length of handling, mm

750

1.5 Height of centers over bed frame, mm

255

2  Indicators of the tool installed on the machine

2.1 Maximum height of the tool installed in the tool post, mm

25

2.2 Drill capacity, mm

           in steel

           in cast iron



25

28

2.3  The number of positions the tool head

8

 2.4 The diameter of  holes in  tool-head for cylindrical shank toolholders,mm

40

3  Indicators of the main and auxiliary machinery movements

3.1 Amount of spindle speed ranges:

      forward rotation

      reverse rotation



3

3

3.2 Frequency limits of the spindle, rpm

20 – 2500

3.3 Type of regulation spindle speed

stepless

3.4  Steps cut thread

0,25-40

4  Power performance of the  machine

4.1 Maximum torque on the spindle, H˖m

800

4.2 Main drive power, kW

11

4.3 Drive power of  longitudinal movement, kW

2,5

4.4 Drive power of transverse movement, kW

2,5

4.8 The greatest total power, kW

17

5 Dimensions and weight of the machine

5.1  Overall dimensions, mm, (max):

       length

       width

       height



3220 / 3600*

1750 / 2250**

2260

5.2 Weight of the machine, kg,  (max):

3800, 4380***

Characteristics of electrical equipment

6.1 Mains current type

Variable,  three-phase

6.2 Current frequency, Hz

50

6.3 Voltage, B

380±38

6.4 Voltage control circuit, В

110 и 24

6.5 Circuit voltage of  local lighting, В

220

Accuracy class according to GOST  8-82

П
