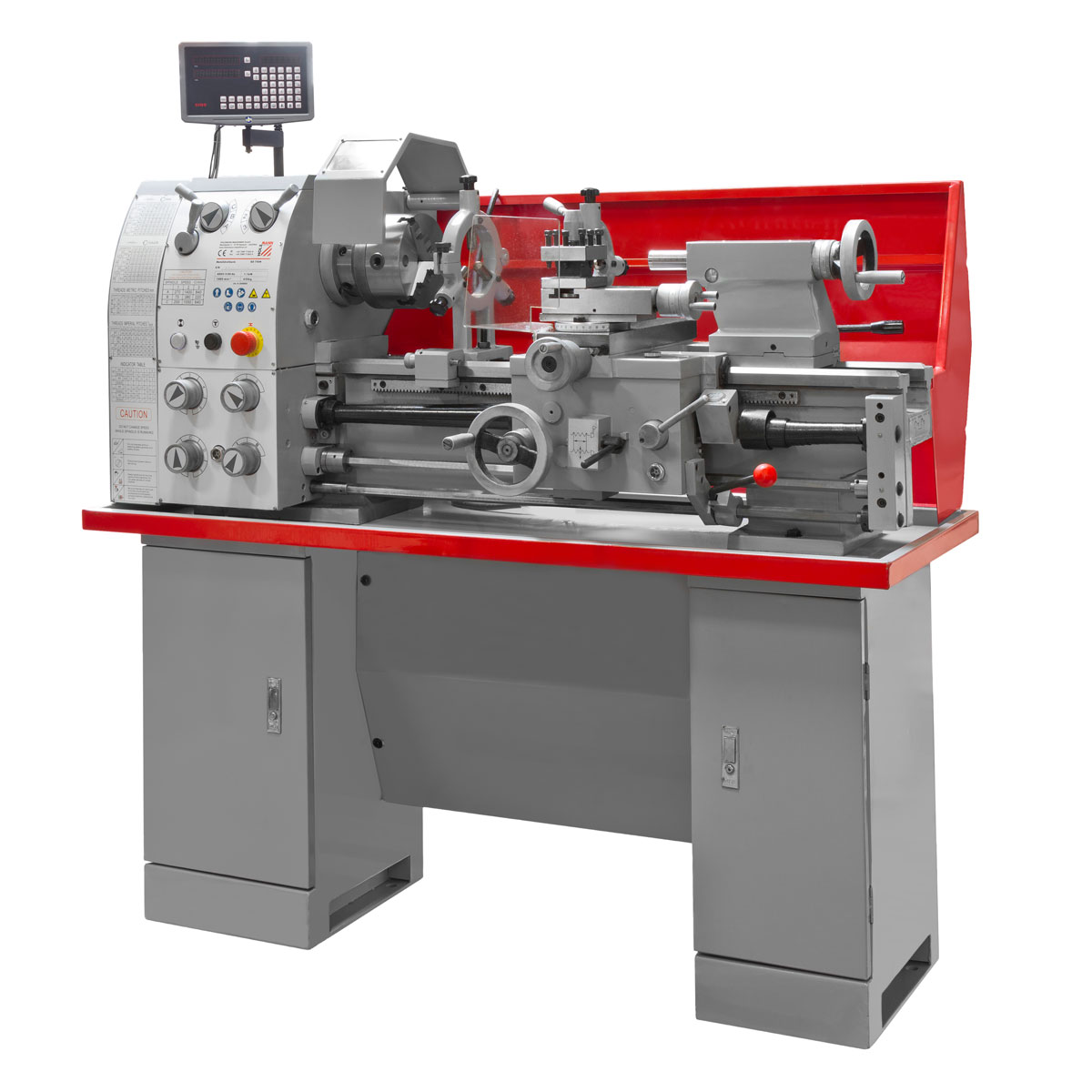

Metalo tekinimo staklės ED750NDIG_400V

    Incl. DIGITAL DISPLAY!
    ideal for locksmithery, workshops and schools

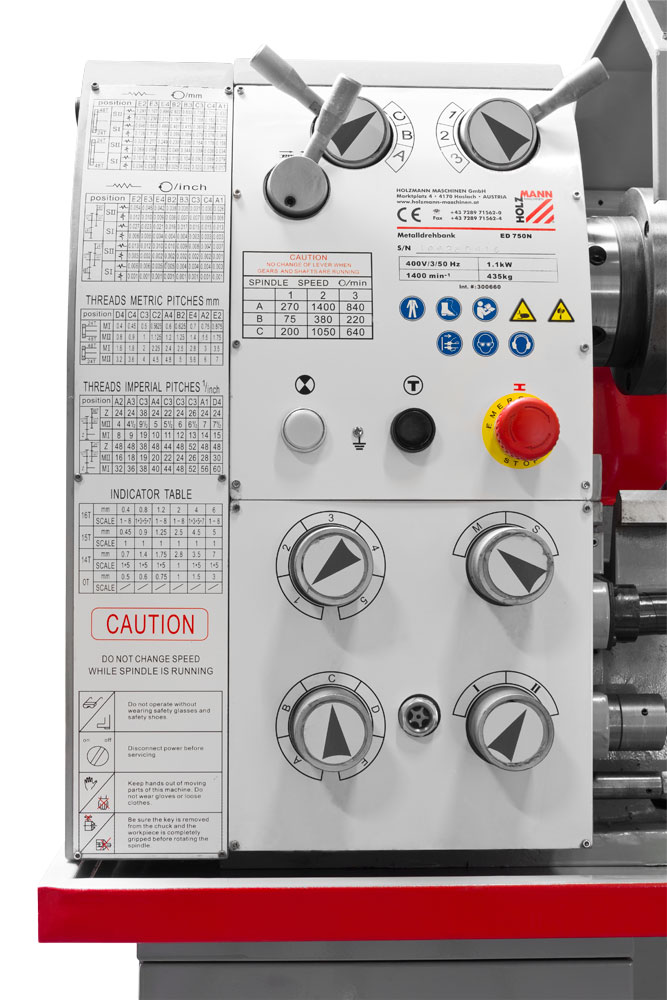

    easy and quick change of rotation speed via gear shaft
    induction-hardened and precision ground cast iron bed
    removable bridge enables to machine large work pieces
    hardened and ground main spindle ensures high true running accuracy

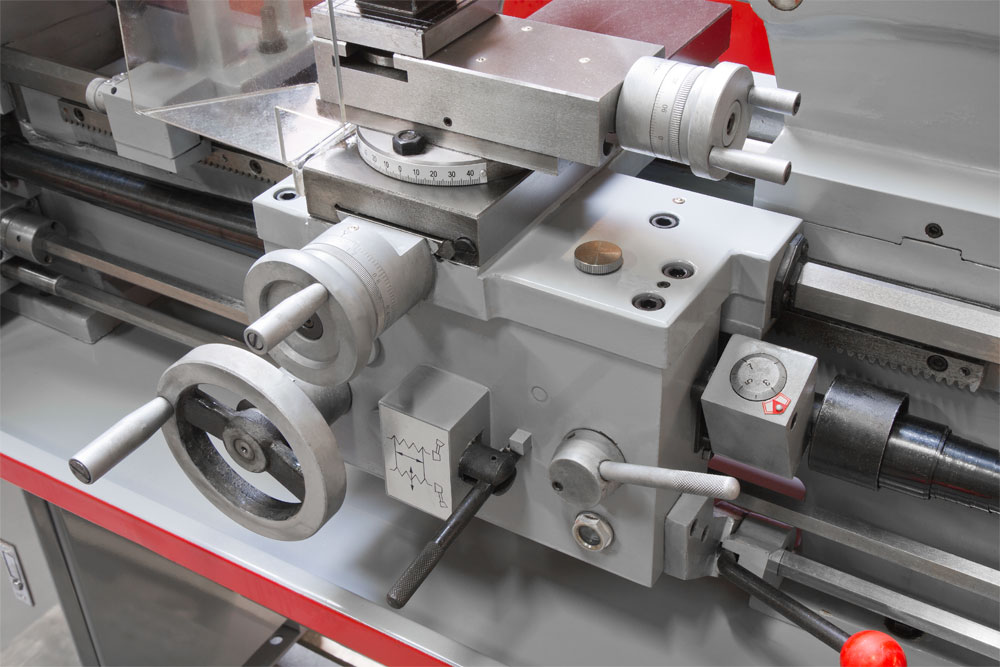

    all guides conveniently adjustable via V-ledges
    hardened and ground gear wheels ensure a smooth run

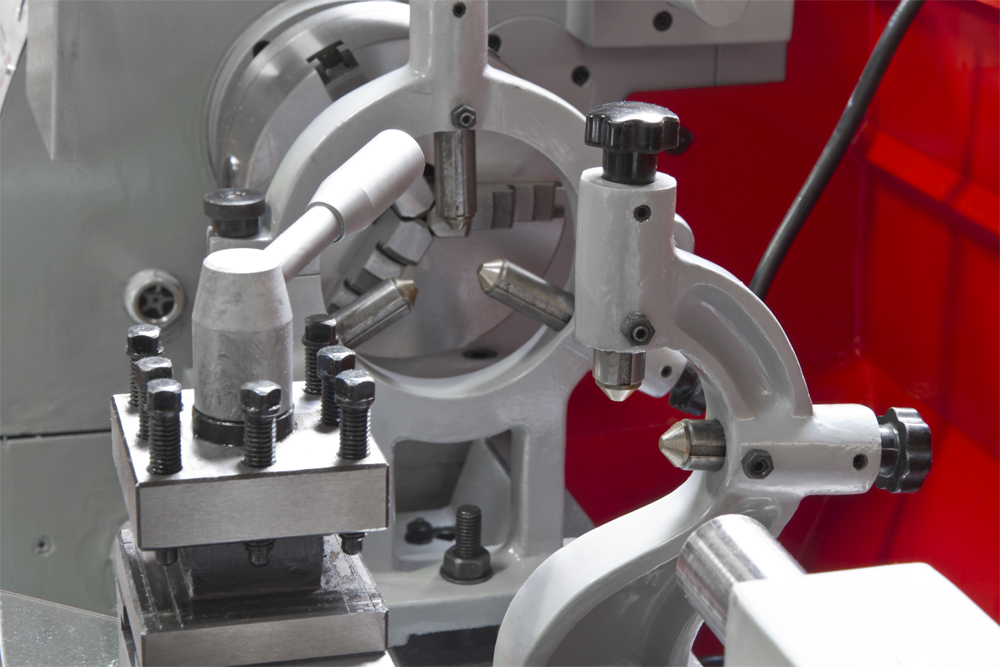

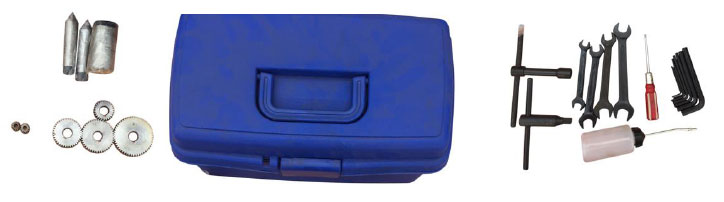

included in delivery: 3-jaw chuck Ø160mm, chuck guard, machine stand, splash guard, steady rest, follow rest, chip tray, 4 way tool post, change gears, 2x dead centres MT3, thread dial, key tools, reducer MT5/MT3

technical details
motor data
motor power s6 in W:1500
motor power s1 in W:1100
voltage: 400V / 3 / 50Hz

turning machines
cross slide travel in mm: 130
distance between centers in mm: 750
max. swing over cross slide in mm: 180
max. tool holder cross-section: 16 mm
longitudinal feed: 0,079-1,291 mm/r
tailstock cone: MT3
carriage travel in mm: 560
cross feed: 0,017-0,276 mm/r
spindle nose mount: D1-4, DIN 55029
spindle bore in mm: 38
range of inch threads: 4-60 TPI
range of metric threads in mm/r: 0,4-7
tailstock sleeve travel: 100
compound slide travel in mm: 80
lathe spindle speed in min-1: 65-140
max. swing in gap in mm: 180
max. swing over bed in mm: 300
center height in mm: 150

weight
gross weight in kg: 485
net weight in kg: 435

packaging
width in mm: 750
length in mm: 1.480
height in mm: 750
