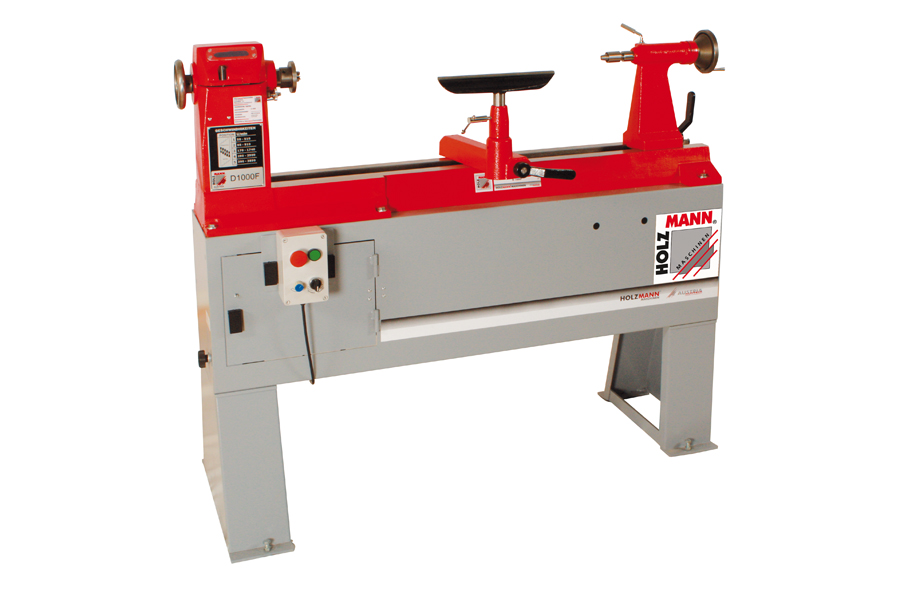

D 1000 F Tekinimo staklės

*patvarios, aukštos kokybės staklės iš ketaus liejinio
*greičio reguliavimas dažnio konverteriu
*kairinė-dešininė eiga
*galimos skirtingos valdymo skydo pozicijos

Sukimosi greitis 50-3890/min
Centro aukštis 260 mm
Tekinimo ilgis 1000 mm
Svoris 330 kg
Matmenys 1450x580x1240 mm
Įtampa/galingumas 400V/1,5kW

• heavy duty and very high quality cast iron machine

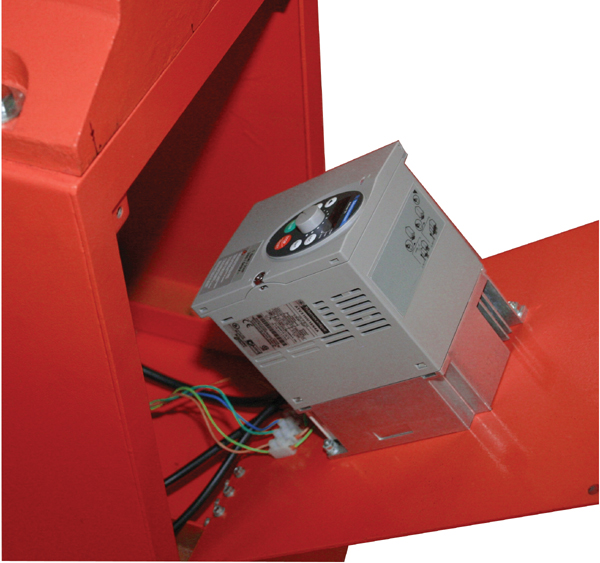

• infinitely variable speed adjustment via frequency convector

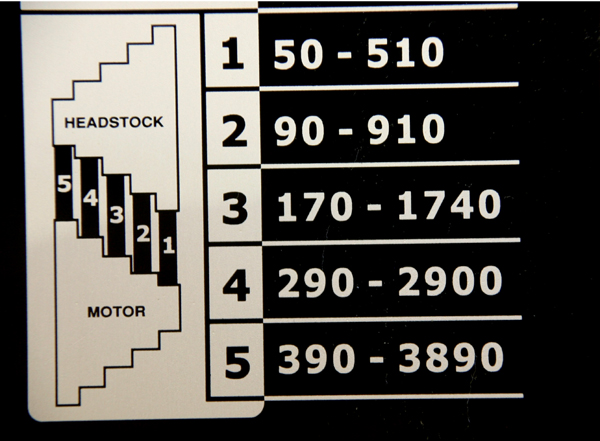

• divided into 5 main steps
• forward/reverse run as standard
• multi-bedded, precisely running main spindle

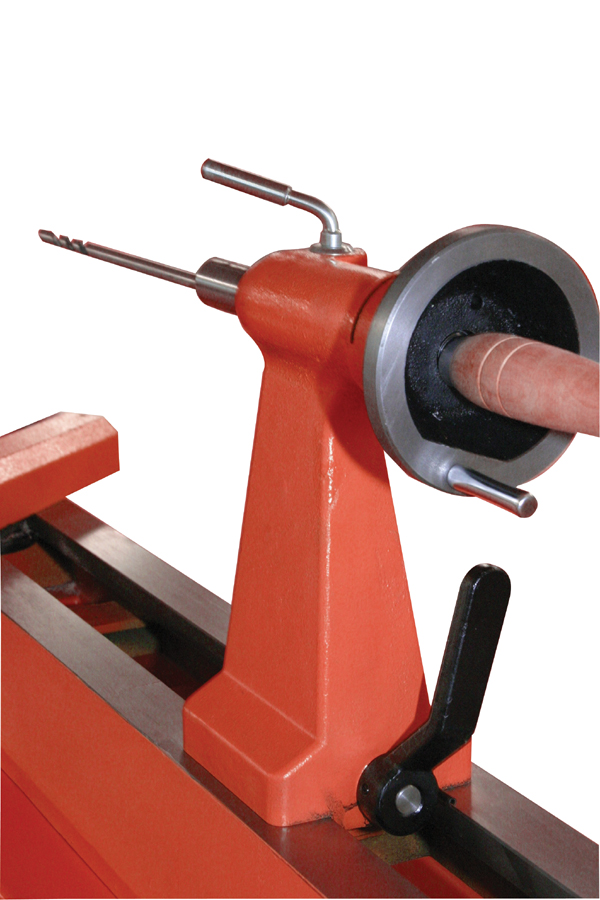

• standardized spindle (M33) at both sides of the tail stock
• very stable and absolutely smoothly running tool rest with quick lock function

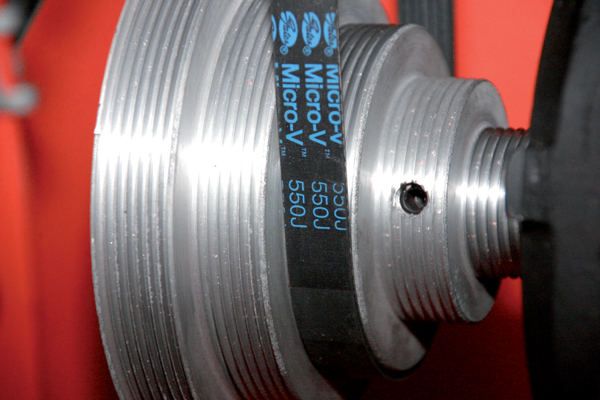

• high quality- POLY-V drive belt assures quiet and smooth run combined with efffective power transmission
• spring loaded index pin with 24 divisions

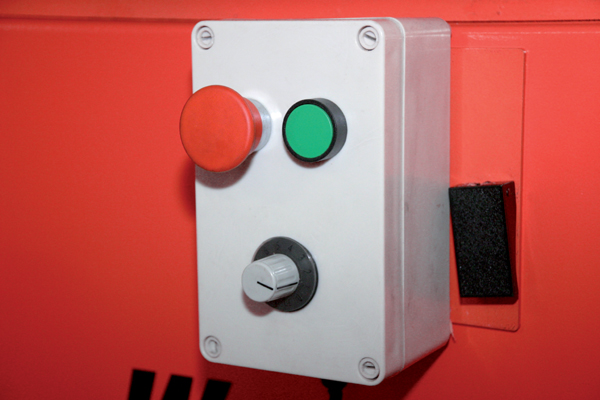

• speed change and machine control via remote control
• control panel can be located at different positions
• spindle bore 14,5mm
• machine size (LxWxH) 1450x580x1240mm

Mielai jus informuosime apie kainos pasikeitimą.
