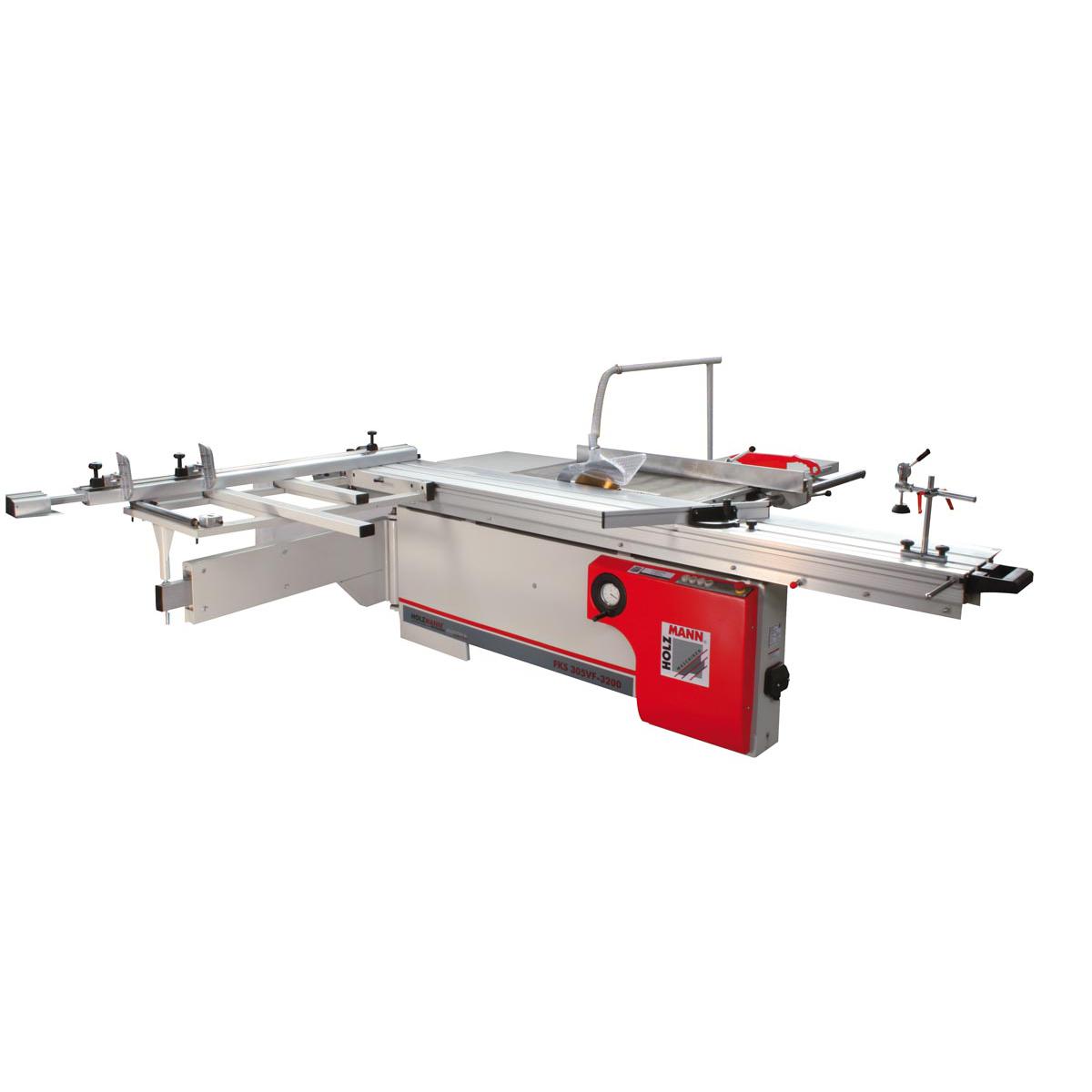

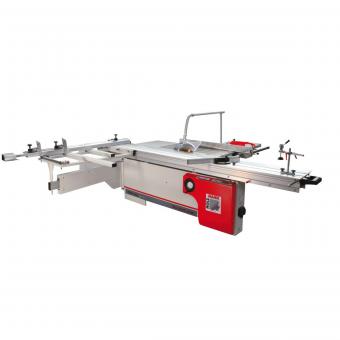

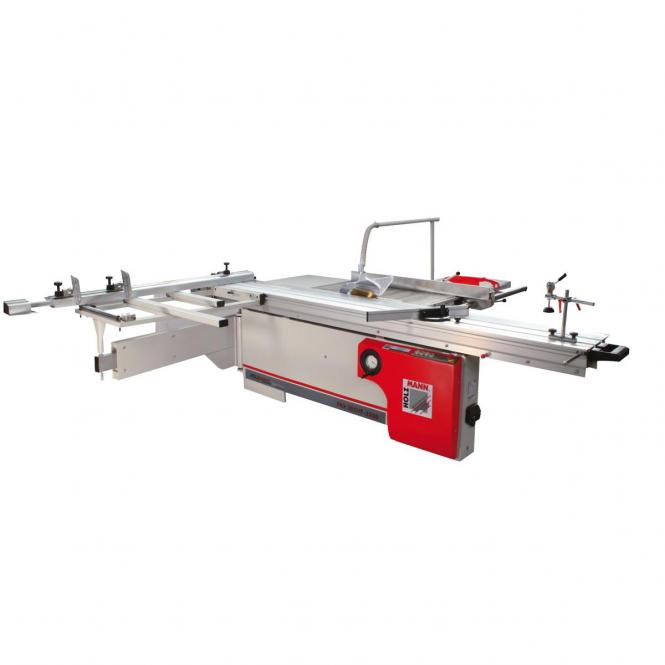

FKS 305 VF-2600 formatinės pjovimo staklės

Select Prekės kodas: FKS305VF-2600
HOLZMANN
Sandėlyje yra Pristatymo laikas: 7 - 14 dienos Svoris 780 kg

highlights

  • Perfect for cutting heavy, large work pieces.
  • massive profi alu sliding table and extra long outrigger enables to handle big workpieces -
  • perfect for cutting heavy large boards and plates

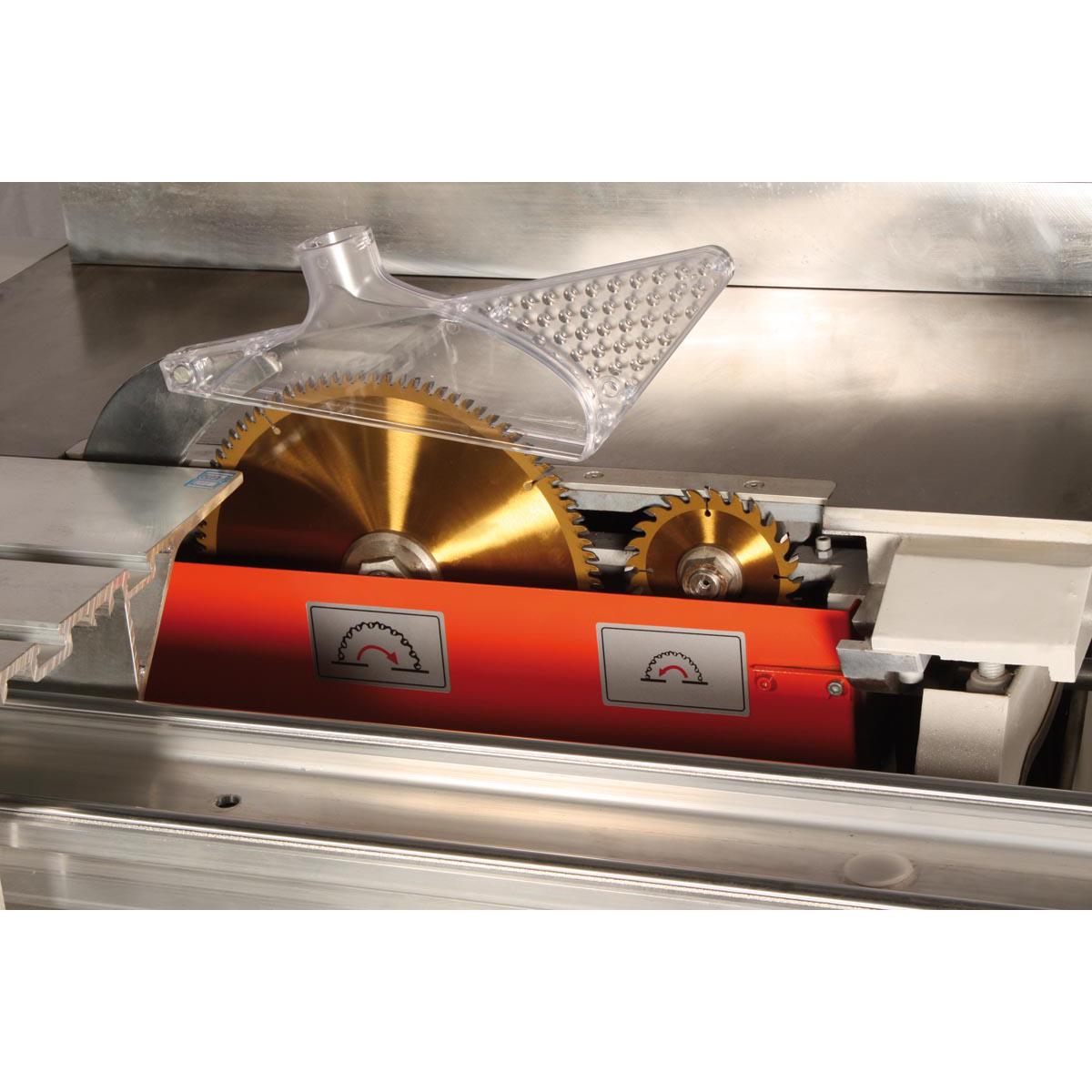

  • equiped scoring unit powered by a separate motor
  • compact control panel located at machine frontside for operation convenience
  • smoothly running saw blade height and angle adjustment via hand wheel
  • analog read out of saw blade adjustment (height and tilt)
  • two different cutting speeds as standard
  • high quality and stable machine body
  • table extensions enable convenient working conditions

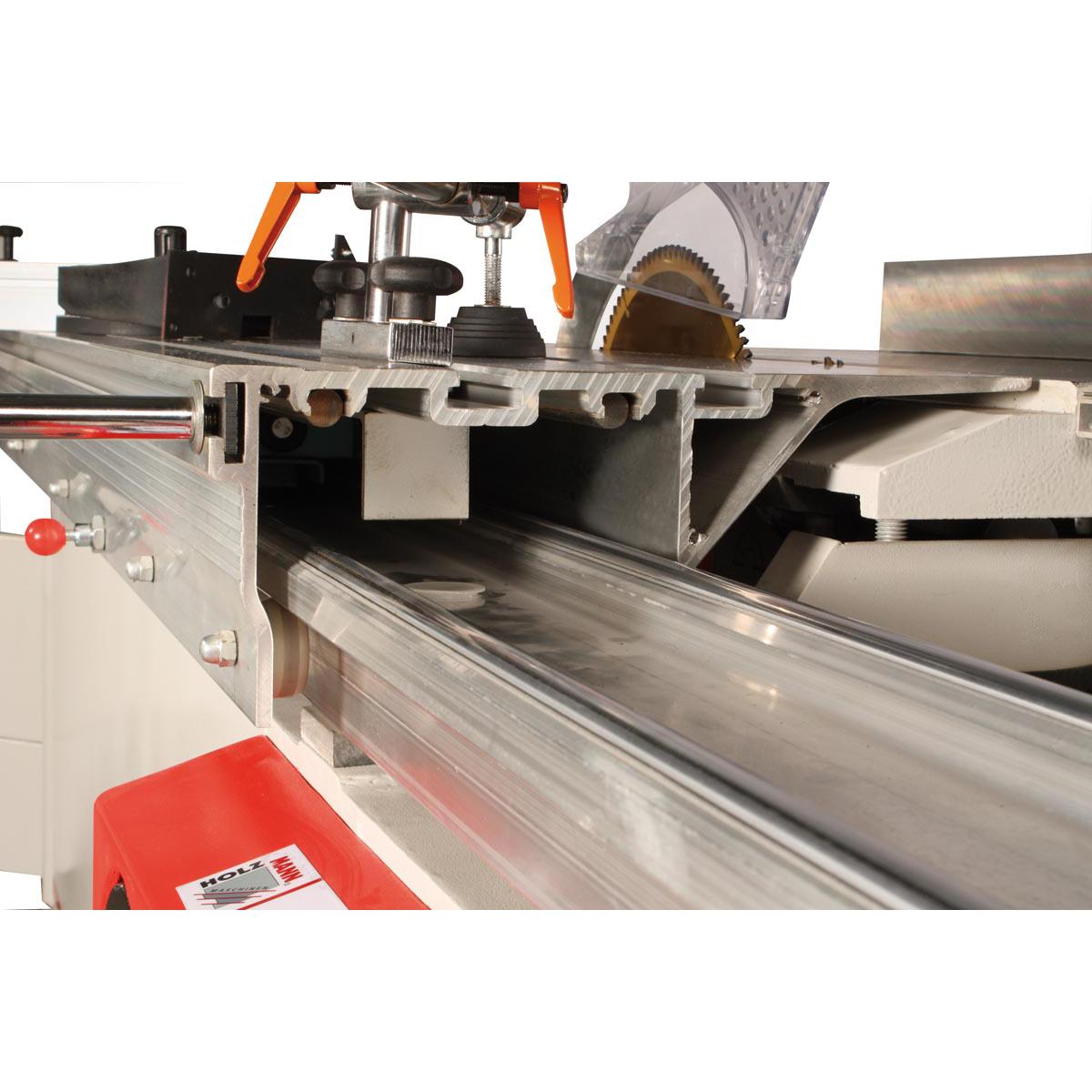

  • double roller carriage aluminium sliding table with
  • hardened steel guides,
  • results in smooth running and highest precision
  • heavy machine with massive, rugged but precise
  • construction for max. cutting accuracy
  • very accurate and solid rip fence with fine adjustment function
  • extractable and solid mitre fence (1600-3150) at outrigger table incl. 2 end stops
  • max. cutting width at parallel fence 1150mm

technical details
motor data

motor power s1 in W 4000
motor power s6 in W 5600
voltage 400V
measurements
outrigger table in mm 1110x610
sliding table in mm 2600x375
suction port in mm 100
table height in mm 850
table extension in mm 500x505 / 790x505
table size in mm 980x550
cutting performance
max. cutting width at parallel fence in mm 1150
max. cutting height 45° in mm 55
max. trimming in mm 2600
max. cutting height 90° in mm 80
scoring unit motor power in W 750/1050
circular saws
sawblade speed in min-1 4500/5500
scoring sawblade in mm Ø120
sawblade in mm 305
scoring unit speed in min-1 8000
sawblade swivel 0°-45°
weight
gross weight in kg 780
net weight in kg 720
packaging
length in mm 2.250
width in mm 1.070
height in mm 980
