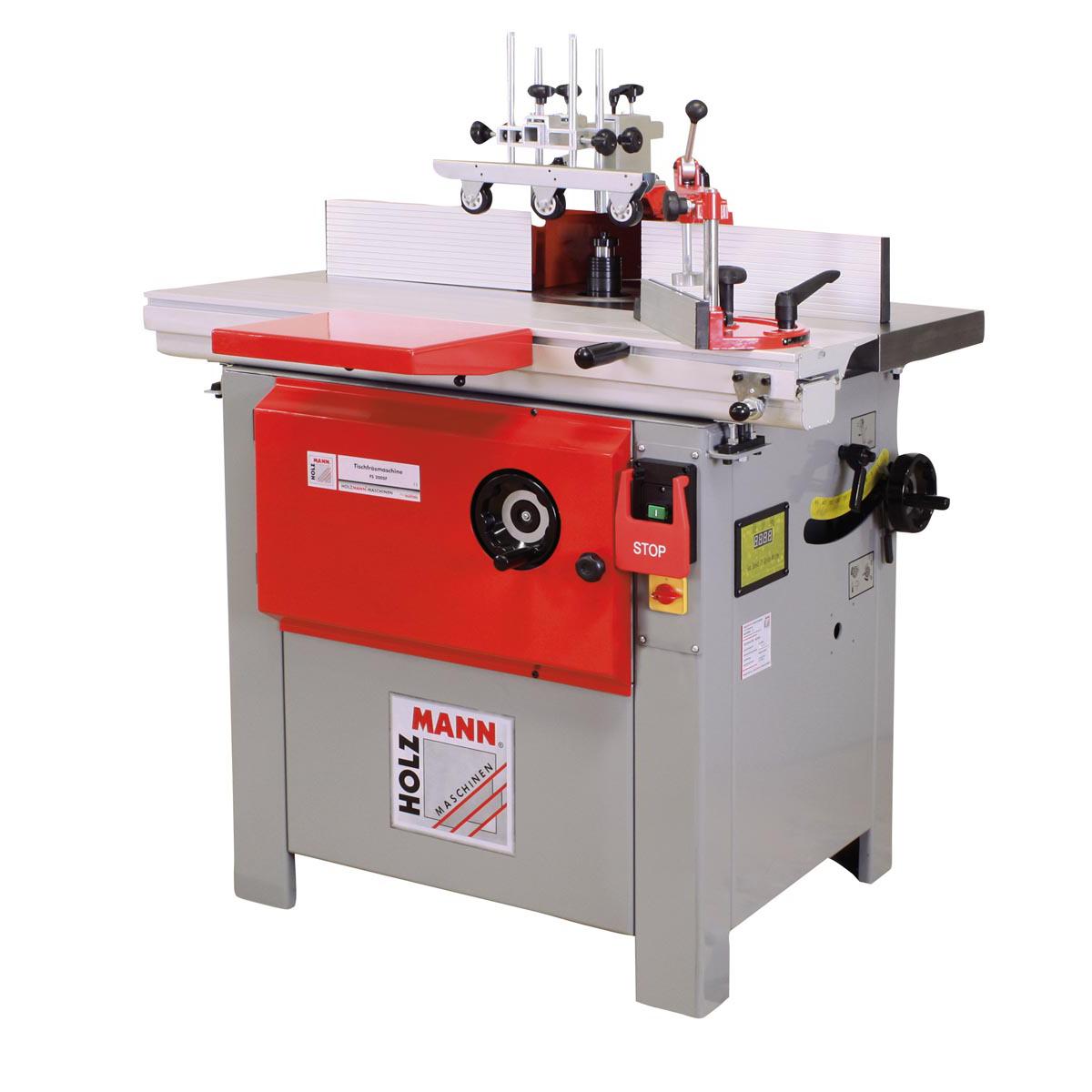

FS 200 SF Frezavimo staklės

Produktas 281 iš 307
Zoom
HOLZMANN
Sandėlyje yra Pristatymo laikas: 7 - 14 dienos Svoris 260 kg

highlights

  • massive and torsion-resistant, ground grey cast iron table
  • smoothly running aluminium sliding table (250mm width) with extension table (+ 250mm width)
  • 4 spindle speeds, maintenance cover positioned at frontside of the machine for convenient speed change.
  • Spindle tilts backwards - up to 45°
  • HQ shaper fence with guiding-rollers ensures an exact workpiece feeding.
  • Electric spindle speed indication via LCD
  • Spindle-lock lever positioned at machine side for fast and convenient cutter head change.
  • Dust extraction plug diameter: 100mm

included in delivery: Table extension, spindle shaper guard, angle gauge incl. workpiece clamp, spindle shaper hood


technical details
motor data

motor power s1 in W 2800
motor power s6 in W 3750
voltage 230V other 400V
measurements
sliding table in mm 1000x250
suction port in mm 100
table height in mm 900
table size in mm 1000x360
milling and drilling
table opening in mm 200
max. tool diameter below table in mm 180
milling spindle swivel 0° +45°
max. clamping height in mm 100
spindle stroke in mm 100
milling spindle speed in min-1 1800/3000/6000/9000
milling spindle diameter in mm 30
mitre fence in mm 360x120
max. tool diameter above table 180
weight
gross weight in kg 260
net weight in kg 218
packaging
length in mm 1.150
width in mm 730
height in mm 1.200
