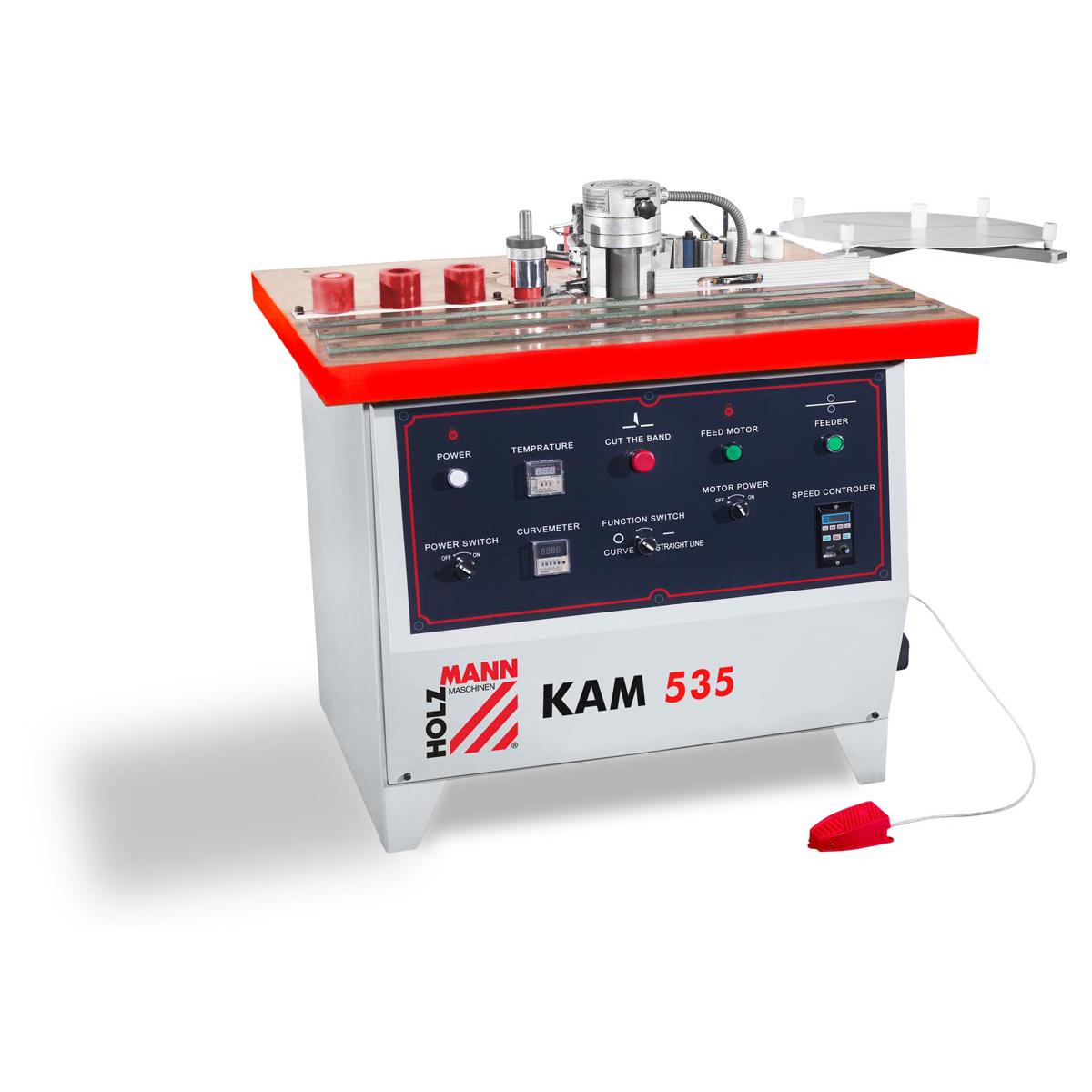

Medienos frezavimo staklės KAM535_400V

    semi-automatic edge banding machine
    the machine is not only suitable for straight but
    also specifically for gluing of curved edges
    direct glue delivery on straight and curved edges
    on both sides - laminate and edge
    automatic length cut-off
    gluing temperature electronically adjustable
    feed speed variable adjustable

motor data
motor power s1 in W:2200
feed speed: 0-14
voltage: 400V / 3x50Hz

measurements
total dimensions in mm:1600x1150x965

workpiece measurements
min. workpiece thickness in mm 10
max. workpiece thickness in mm 40

edge banding
edge thickness in mm 0,3 - 3
edge width in mm 15 - 50
required air pressure in bar 6
min. curve radius in mm 20

weight
net weight in kg 280
gross weight in kg 340

packaging
height in mm 860
width in mm 1.060
length in mm 1.060
