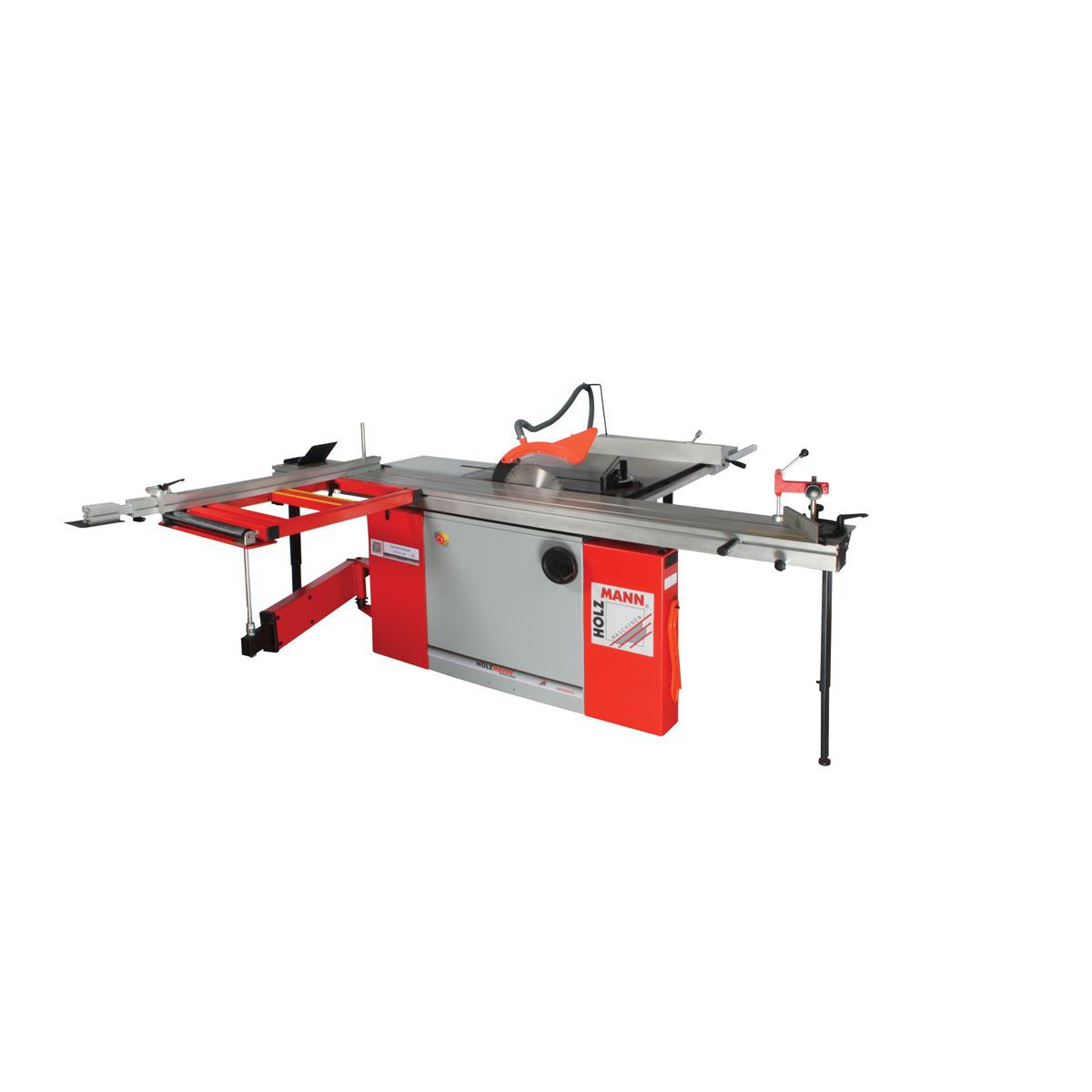

TS 315VF-2600 formatinės pjovimo staklės

Produktas 292 iš 307
Zoom

TS 315VF-2600 formatinės pjovimo staklės

Select Prekės kodas: TS315VF-2600
HOLZMANN
Sandėlyje yra Pristatymo laikas: 7 - 14 dienos Svoris 370 kg

highlights

  • extension table and rip fence guide bar can be clapped
  • down fast and with ease

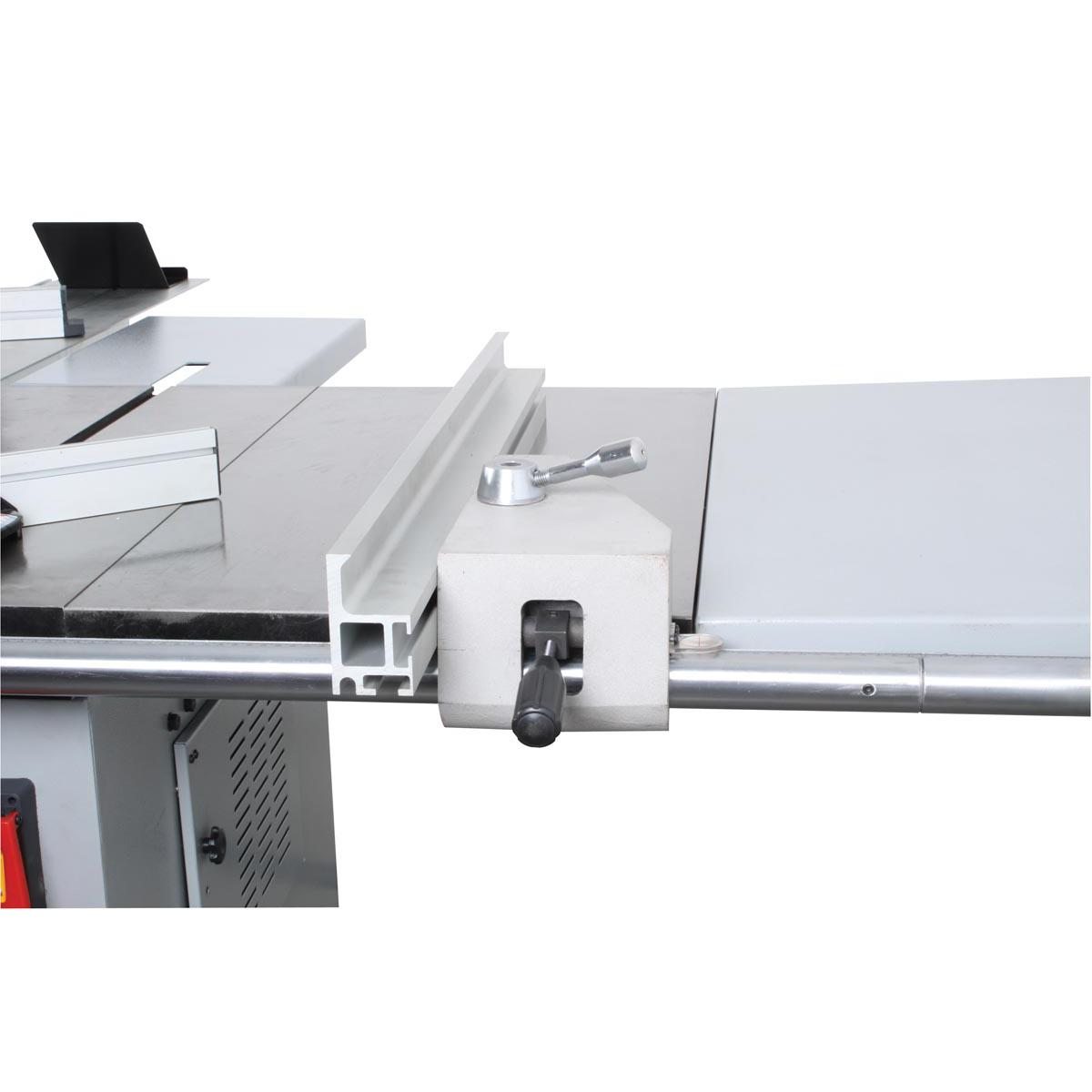

  • solid and smoothly running rip fence with quick clamp and bar guided
  • tiltable and height adjustable circular saw blade with scoring unit
  • cast iron table with table extension in the back and left with support leg
  • extractable fence with worpiece end stop
  • support roller at outrigger table eases the work piece allocation
  • strengthened machine body below the sliding table
  • increases stability
  • XL cutting width at rip fence with max.1260mm
  • high quality 2-piece scoring saw blade included

included in delivery: scoring unit, 1x T.C.T. saw blade Ø315mm, 1x T.C.T. scoring blade Ø100mm, mitre gauge, parallel fence, telescopic fence

technical details
motor data

motor power s1 in W 3800
motor power s6 in W 5100
voltage 230V or 400V
measurements
outrigger table in mm 760x540
sliding table in mm 2600x270
suction port in mm 100
table height in mm 850
table extension in mm 500x310 /800x440
table size in mm 800x820
cutting performance
max. cutting width at parallel fence in mm 1220
max. cutting height 45° in mm 75
max. trimming in mm 2600
max. cutting height 90° in mm 100
circular saws
sawblade speed in min-1 4500
scoring sawblade in mm 100
sawblade in mm 315
scoring unit speed in min-1 8500
sawblade swivel 0°-45°
weight
gross weight in kg 370
net weight in kg 340
packaging
length in mm 1.220
width in mm 765
height in mm 1.040
