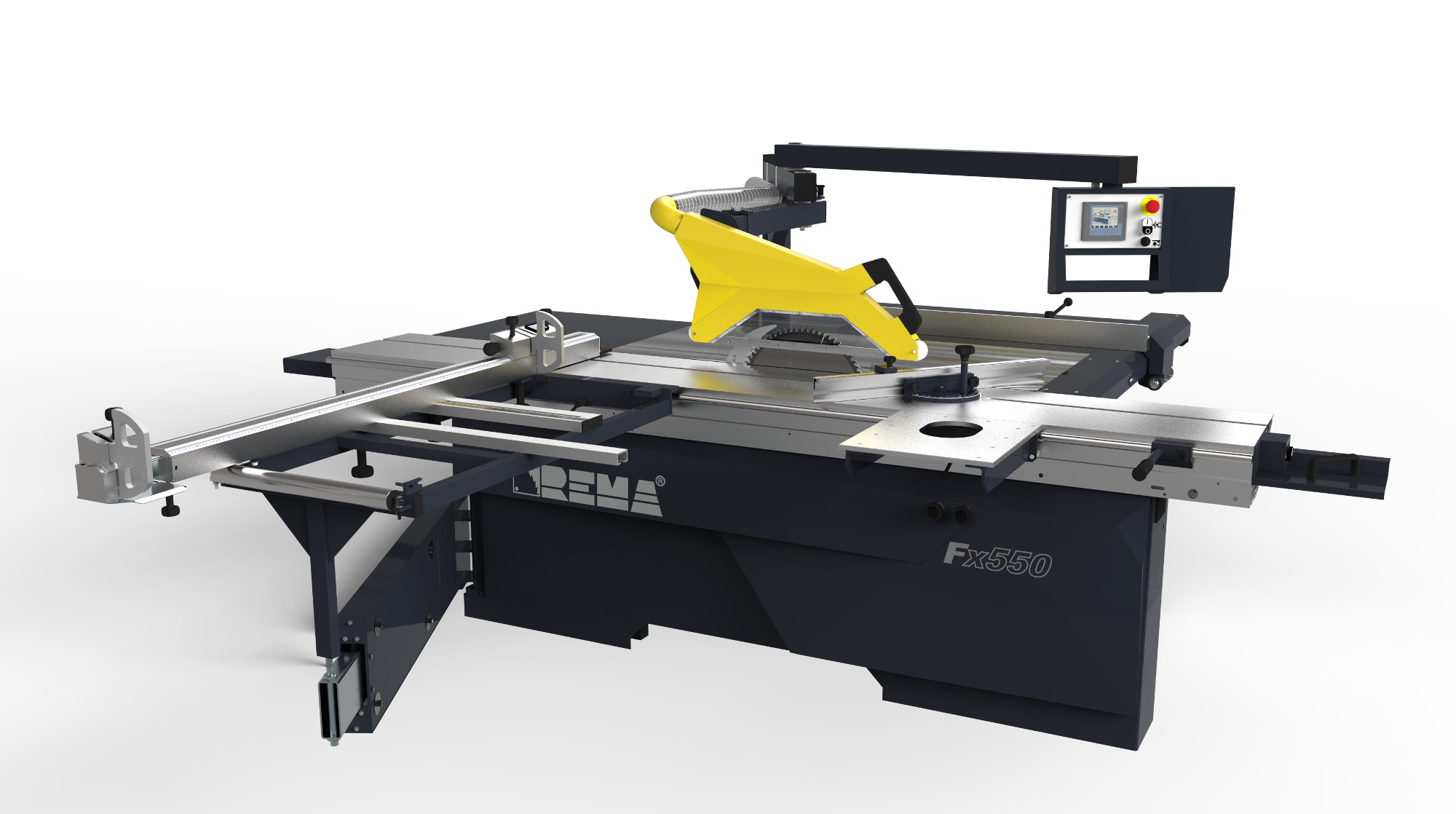

FX 550 formatinės pjovimo staklės

Zoom

FX 550 formatinės pjovimo staklės

Select Prekės kodas: fx550
REMA
Sandėlyje nėra ! Svoris 1400 kg
The diameter of the main saw blade⌀ 300 - Φ550 mm
Vertical adjustment height of the main saw
for a saw ⌀300 0 - 75 mm
for a saw ⌀350 15 -100 mm
for a saw ⌀400 40 - 125 mm
for a saw ⌀450 73 - 150 mm
for a saw ⌀500 90 - 175 mm
for a saw ⌀550 120 - 200 mm
Height of saw blade adjustment at 45°
for a saw ⌀300 0 - 50 mm
for a saw ⌀350 10 - 70 mm
for a saw ⌀400 28 - 85 mm
for a saw ⌀450 50 -105 mm
for a saw ⌀500 63 - 122 mm
for a saw ⌀550 85 - 140 mm
Tilting circular saw0 - 45° / (opcja) 0 - 46 °
The length of sawing using auxiliary table
with terminal set from the back of the table dla stołu ruchomego 250 = 2500 mm
with terminal set from the back of the table dla stołu ruchomego 300 = 3000 mm
with terminal set from the back of the table dla stołu ruchomego 320 = 3200 mm
with terminal set from the back of the table dla stołu ruchomego 390 = 3700 mm
Width of sawing using auxiliary bumper on the table
Bumper 170 – 1840 mm
Bumper with microadjustment 170 – 1682 mm
Slide 1950 - 3200 mm

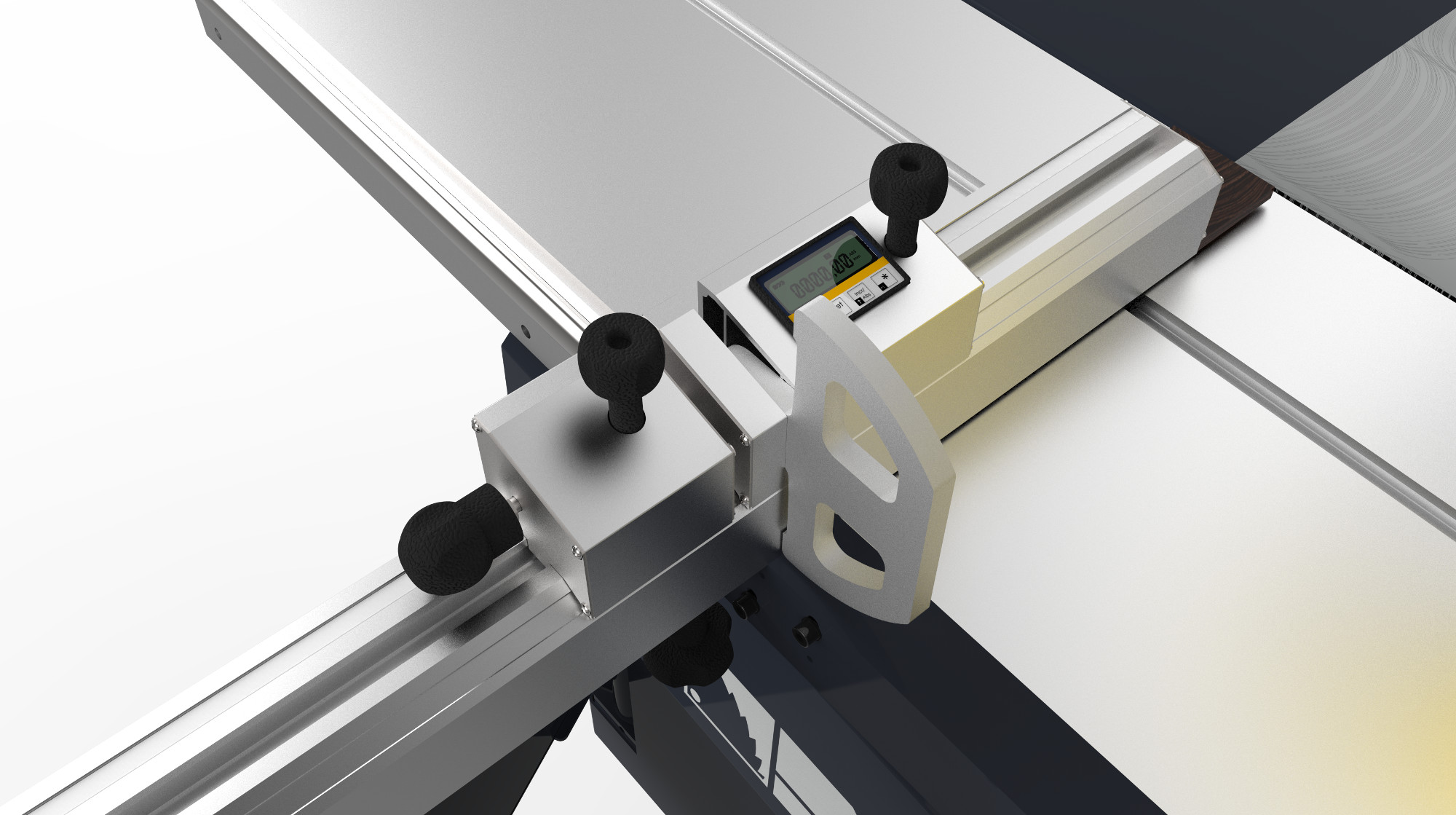

Bumper with digital reading 213 – 1845 mm
Bumper with digital reading with microadjustment 213 – 1685 mm
Max. the longitudinal distance from the saw 1400 mm

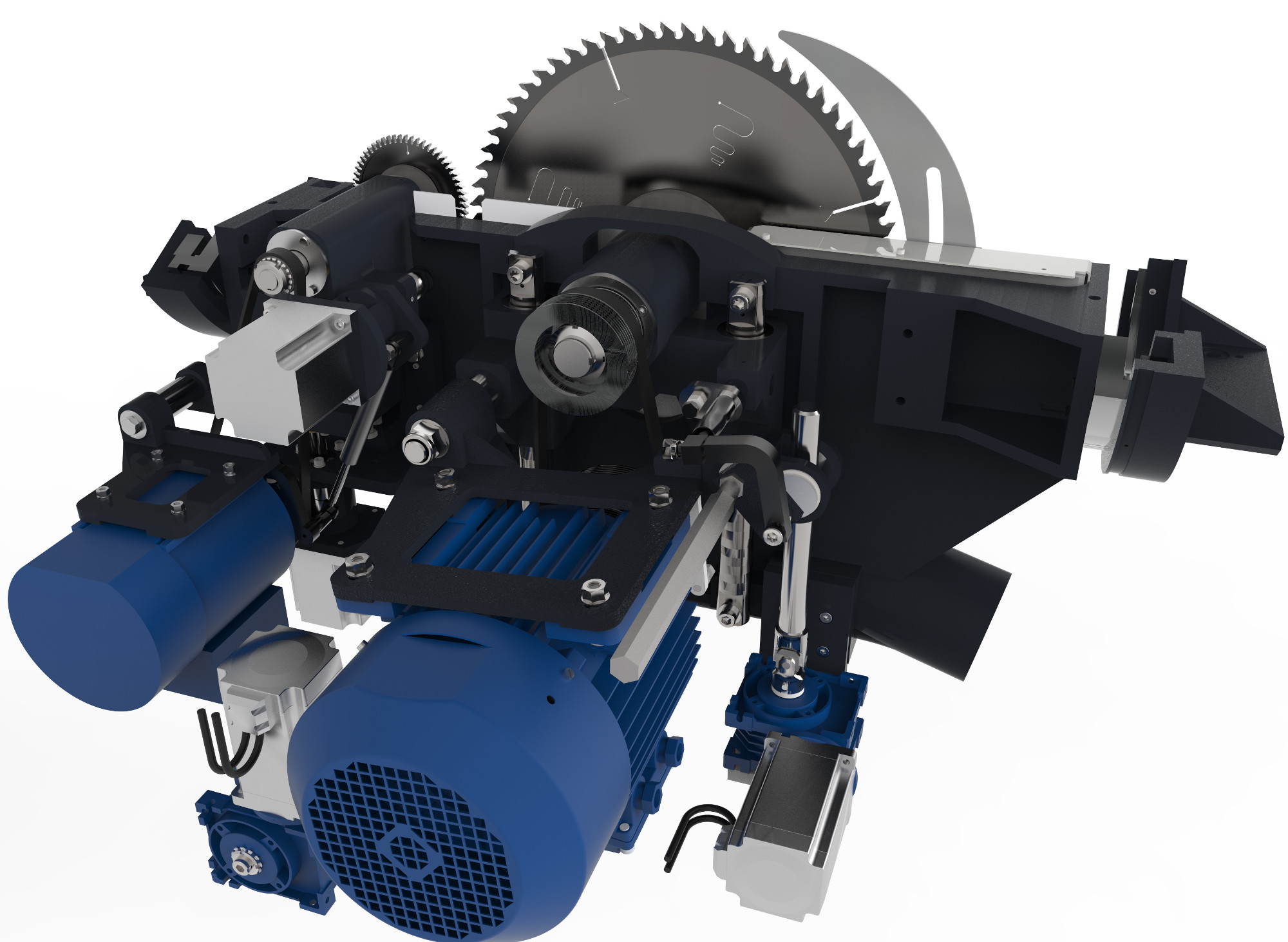

Parameters of the drive unit
Main engine power6 kW / (opcja) 7,5 kW
Motor spindle undercut0,75 kW
The diameter of the saw blade spindle undercut⌀ 120 - Φ130 mm
The rotational speed of the spindle undercut8500 obr./min.
The diameter of the tip of the main spindle⌀ 30 mm
The diameter of the tip of the spindle undercut⌀ 20 mm
The rotational speed of the main spindle3500 obr./min, 4500 obr./min, 6000 obr./min.

The geometrical dimensions of the saw

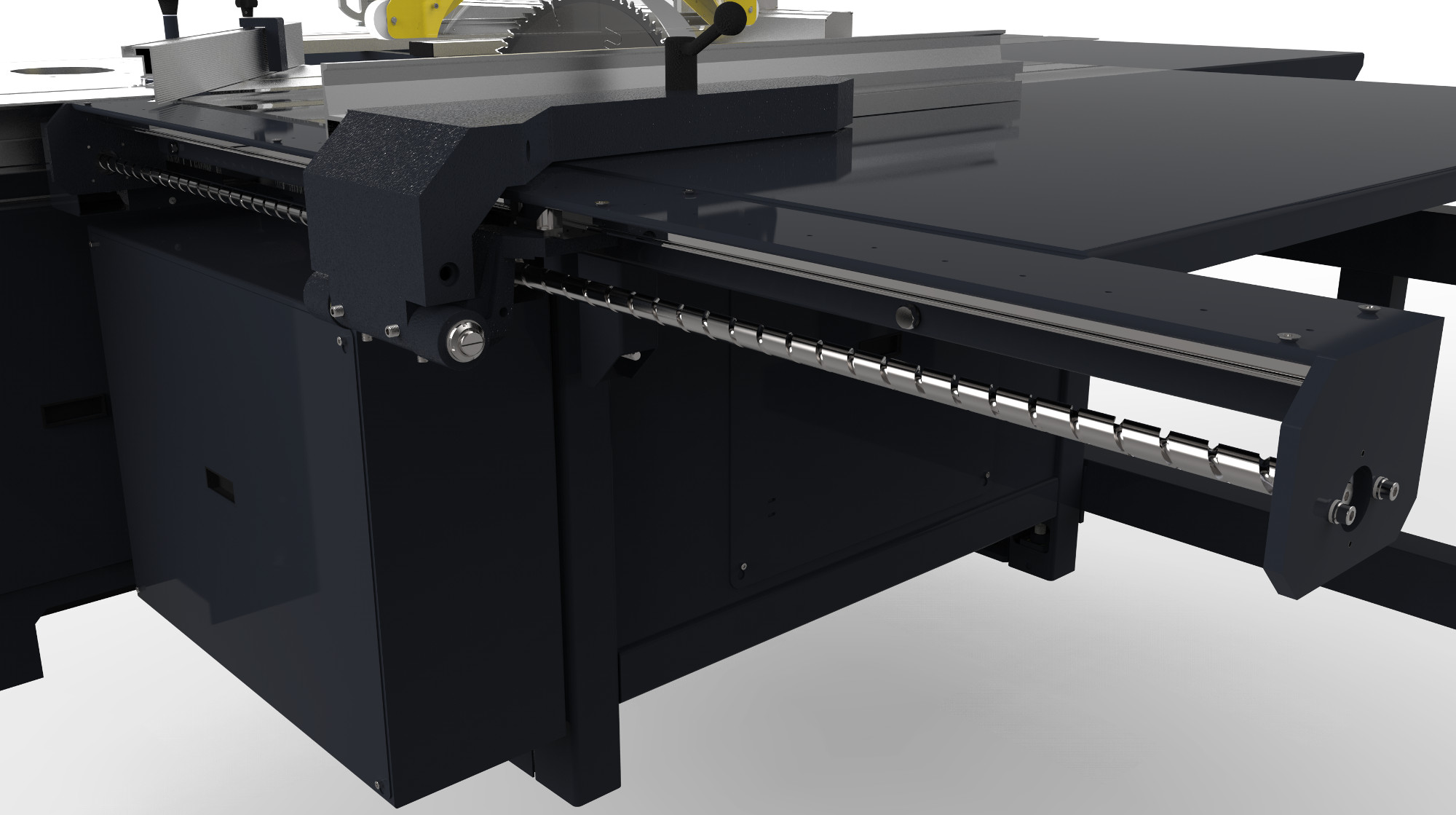

Dimensions sliding tablestół 250: 416 x 2500 mm
Dimensions sliding tablestół 300: 416 x 3010 mm
Dimensions sliding tablestół 320: 416 x 3200 mm
Dimensions sliding tablestół 390: 416 x 3900 mm
table dimensions705 x 1500 mm
Working height of the table890 mm
Saw dimensions
length dla wersji stołu 250 = 3000 mm
length dla wersji stołu 300 = 3500 mm
length dla wersji stołu 320 = 3700 mm
length dla wersji stołu 390 = 4400 mm
width 3776 + wysuwka, łącznie 5025 mm
maximum height 1580 mm
The outer diameter of the sawdust - the upper cover ⌀ 80 mm
The outer diameter of the sawdust - the bottom nozzle ⌀ 125 mm
The demand of air suction bottom 900 m3/h
Air consumption covers the top 360 m3/h
The air speed in the suction nipples 28 m/s
Mass 1400 kg
