Fx450 formatinės pjovimo staklės

Zoom

Prekės kodas: fx450

0.00 € *

Sandėlyje nėra ! Svoris 1250 kg

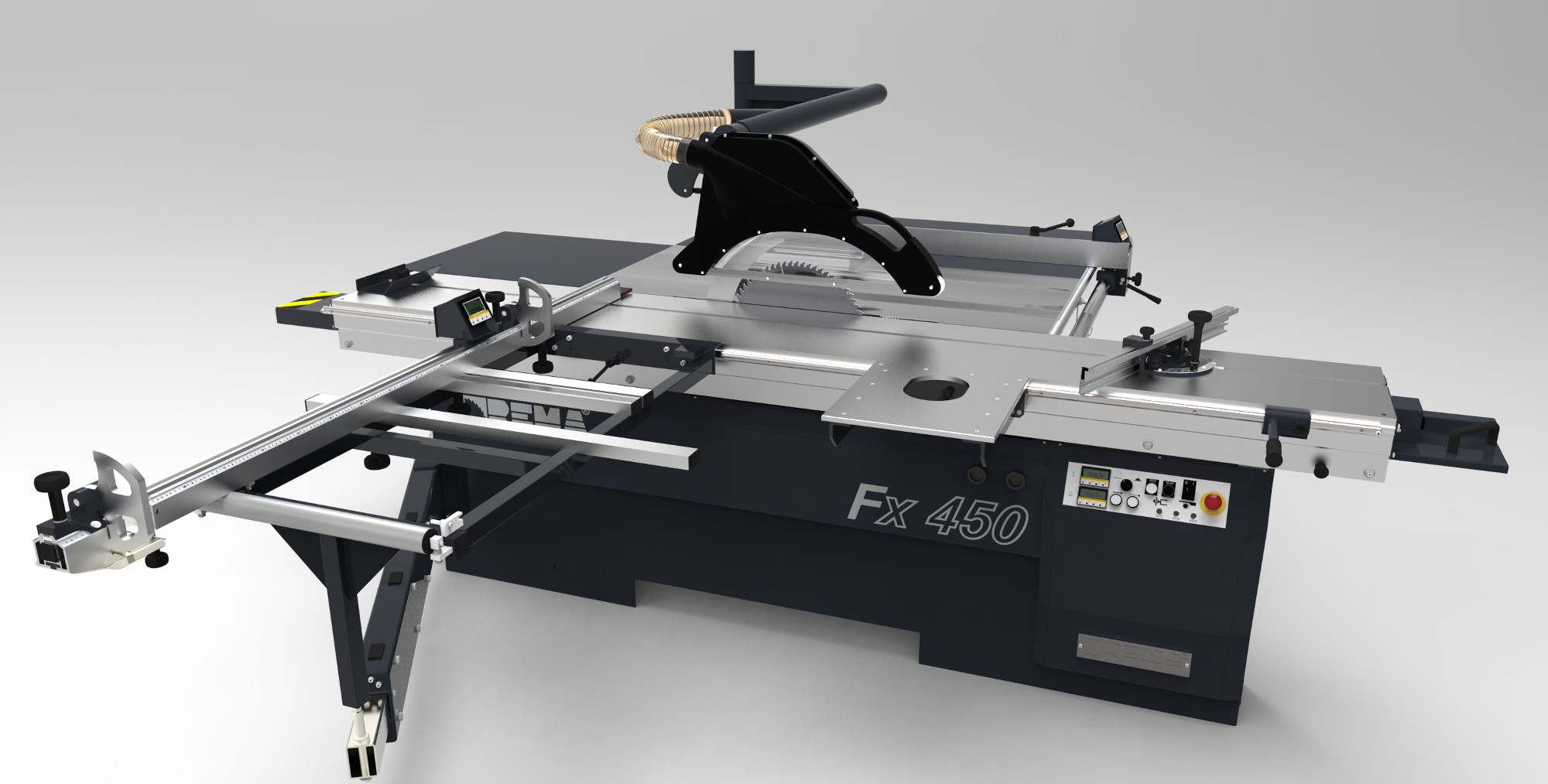

Prekės nuotrauka

The diameter of the main saw blade	⌀ 300 - ⌀ 450 mm mm
Vertical adjustment height of the main saw
for a saw ⌀300	0 - 75 mm
for a saw ⌀350	0 -100 mm
for a saw ⌀400	20 - 125 mm
for a saw ⌀450	45 - 150 mm
Height of saw blade adjustment at 45°
for a saw ⌀300	0 - 50 mm
for a saw ⌀350	0 - 70 mm
for a saw ⌀400	12 - 85 mm
for a saw ⌀450	30 -105 mm
Tilting circular saw	0 - 45° / (opcja) 0 - 46 °
The length of sawing using auxiliary table
with terminal set from the back of the table	table 300 = 3000 mm
with terminal set from the back of the table	table 390 = 3700 mm
with terminal set from the back of the table	table 320 = 3200 mm
Width of sawing using auxiliary bumper on the table
Bumper	50 – 1750 mm
Slide	1965 - 3200 mm
Bumper with digital reading	50 -1630 mm
Max. the longitudinal distance from the saw	1400 mm

Main engine power	6 kW / (opcja) 7,5 kW
Motor spindle undercut	0,75 kW
The diameter of the saw blade spindle undercut	⌀ 120 - ⌀ 130 mm
The rotational speed of the spindle undercut	8500 obr./min.
The diameter of the tip of the main spindle	⌀ 30 mm
The diameter of the tip of the spindle undercut	⌀ 20 mm
The rotational speed of the main spindle	3500 obr./min, 4500 obr./min, 6000 obr./min.

Dimensions sliding table	table 390: 416 x 3900 mm
Dimensions sliding table	table 320: 416 x 3200 mm
Dimensions sliding table	table 300: 416 x 3010 mm
Table size DC
width	705 mm
length	1500 mm
Saw dimensions
length	table 390: 4400 mm
length	table 320: 3700 mm
length	table 300: 3500 mm
width	3900 + 5000 mm
maximum height	1950 mm
The outer diameter of the sawdust - the upper cover	⌀ 80 mm
The outer diameter of the sawdust - the bottom nozzle	⌀ 125 mm
The demand of air suction bottom	900 m³/h
Air consumption covers the top	360 m³/h
The air speed in the suction nipples	28 m/s
Mass	1250 kg
