Kiaurymių restauravimo įrenginys BASIC

Zoom
Kiaurymių restauravimo įrenginys BASIC

Kiaurymių restauravimo įrenginys BASIC

Select Prekės kodas: BASIC
Diametrai nuo Ø 22 mm iki Ø 120 mm (0,87" - 4,72")
Sandėlyje nėra !

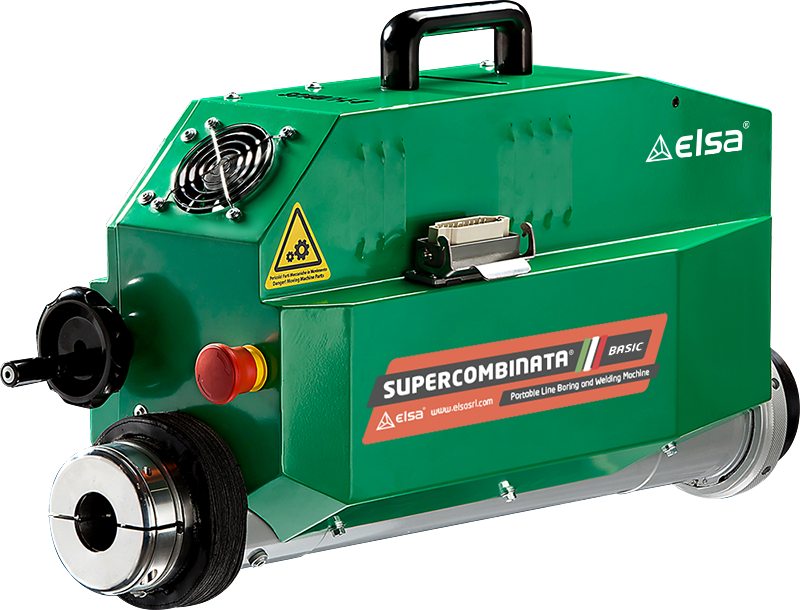

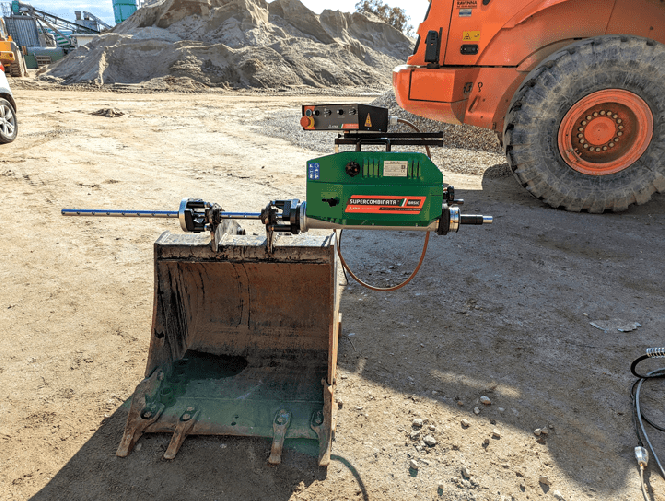

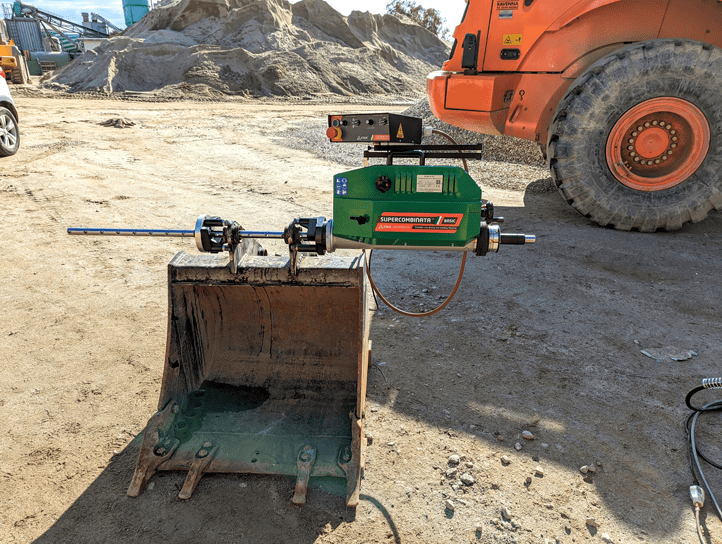

The Supercombinata BASIC is the entry-level solution of the Supercombinata series, with professional performance and at an affordable price. With its standard equipment, the machine is able to perform inline boring operations in the range from Ø 22 mm up to 120 mm, ideal for repairs in the field of earthmoving and for simple applications.  With the BASIC 250 kits the machine can carry out inline boring and overlay welding up to Ø 250 mm and, with the other additional kits, external turning, facing of orthogonal planes and creation of seeger ring seats up to Ø 250 mm



Boring bar diameter: ø 20 x 1800 mm / ø 40 x 1500 mm

Line boring: ø 22 – 120 mm

External turning: Extra kit

Internal welding: Extra kit

Facing: Extra kit


ROTATION MOTOR

AC motor: Single phase

Power at rated speed: 1800 W

Output torque at the bar: 290 Nm with 120 rpm

1° speed: max 115 rpm (145 Nm)

2° speed: max 400 rpm (45 Nm)


FEED MOTOR

Gear motor: DC

Power at rated speed: 90 W

Max speed: 11 rpm

Feed system: Electromechanical

Feed: Manual/Automatic


LONGITUDINAL STROKE

Unlimited: With 350 mm pitch


ELECTRONIC CONTROL PANEL

Voltage: 230 V (50Hz)

Main switch: Available

Emergency switch: Available

Inverter feed: RH/LH

Inverter rotation: CW/CCW

Speed regulator: Rotation/Feed

Electrical absorption: 2000 W

Control panel 110/120 V: Upon request

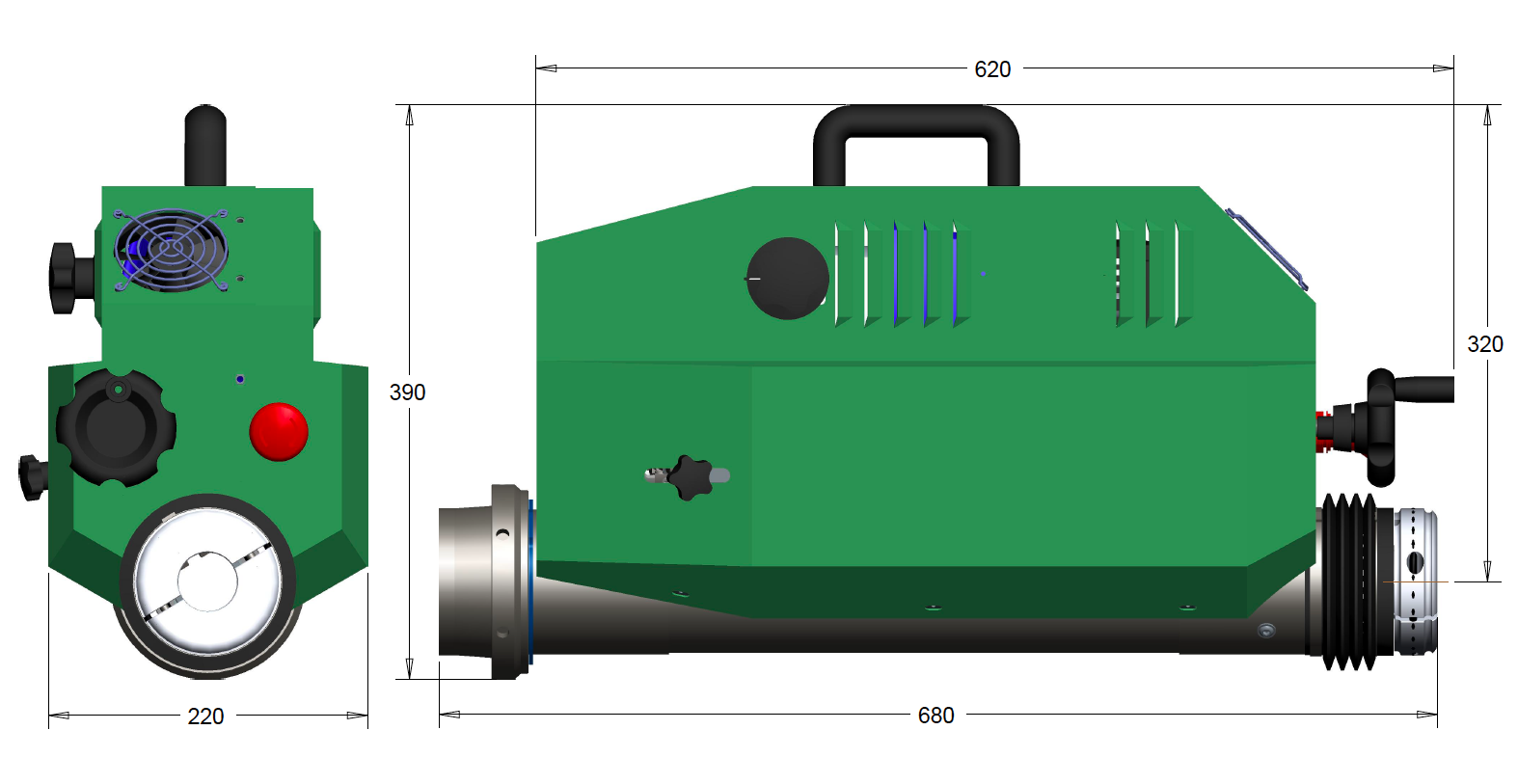

DIMENSIONS

Length: 680 mm

Width: 240 mm

Height: 380 mm

Weight central unit: 36 Kg
