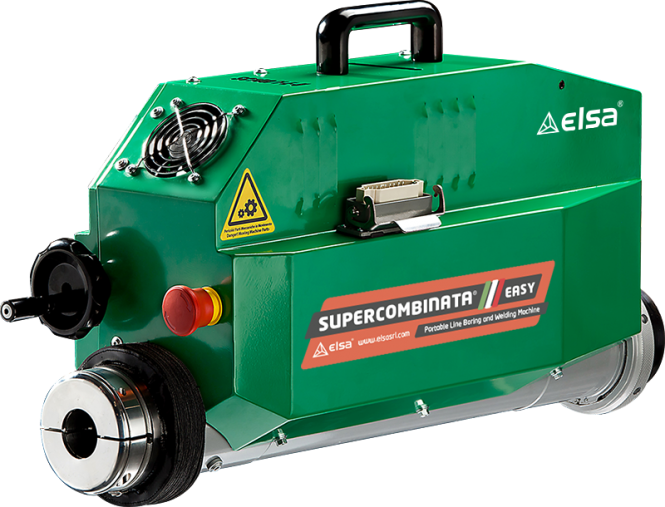

Kiaurymių restauravimo įrenginys EASY

Zoom
Kiaurymių restauravimo įrenginys EASY

Kiaurymių restauravimo įrenginys EASY

Select Prekės kodas: EASY
Diametras nuo Ø 32 mm iki Ø 250 mm (1,26" - 9,84")
Sandėlyje nėra !

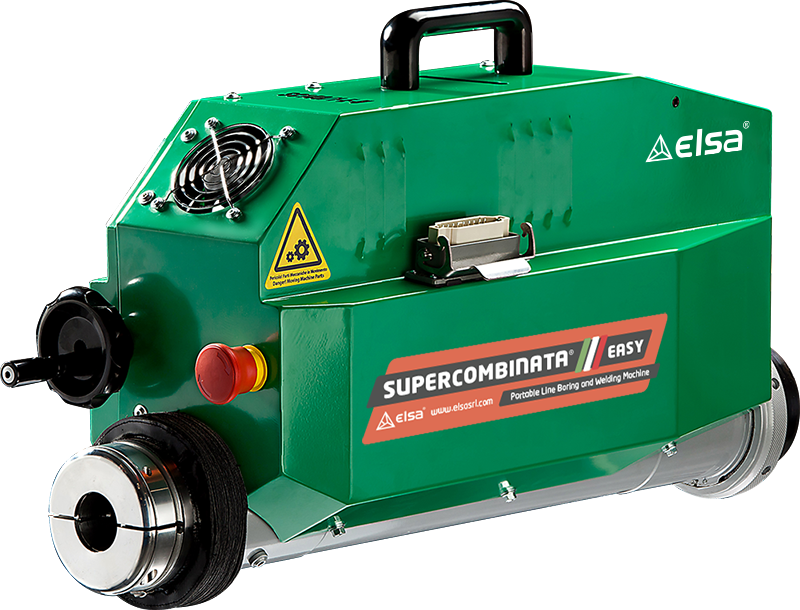

The Supercombinata EASY, thanks to its standard equipment, is suitable to perform internal line boring and internal overlay welding within a working range from Ø 32 mm to Ø 250 mm. By means of extra kits, it is suitable to perform external turning, facing of orthogonal planes and creation of circlips grooves. With additional accessories, the Supercombinata can be adapted to many different needs of our customers.
EASY 110 V
DIAMETERS

Boring bar diameter: ø 40 x 2200 mm

Line boring: ø 32 – 250 mm

External turning: Extra kit

Internal welding: ø 42 – 250 mm

Facing: Extra kit


ROTATION MOTOR

AC motor: Single phase

Power at rated speed: 1800 W

Output torque at the bar: 290 Nm with 120 rpm

1° speed: max 115 rpm (145 Nm)

2° speed: max 400 rpm (45 Nm)


FEED MOTOR

Gear motor: DC

Power at rated speed : 90 W

Max speed: 11 rpm

Feed system: Electromechanical

Feed: Manual/Automatic


WELDING TECHNOLOGY

Spiral: Continuous with variable step

Welding machine: Compatible with MIG/MAG welder with EURO connector


LONGITUDINAL STROKE

Unlimited: With 350 mm pitch


ELECTRONIC CONTROL PANEL

Voltage: 230 V (50 Hz)

Main switch: Available

Emergency switch: Available

Inverter feed: RH/LH

Inverter rotation: CW/CCW

Speed regulator: Rotation/Feed

Electrical absorption: 2000 W

Control panel 110/120 V: Upon request

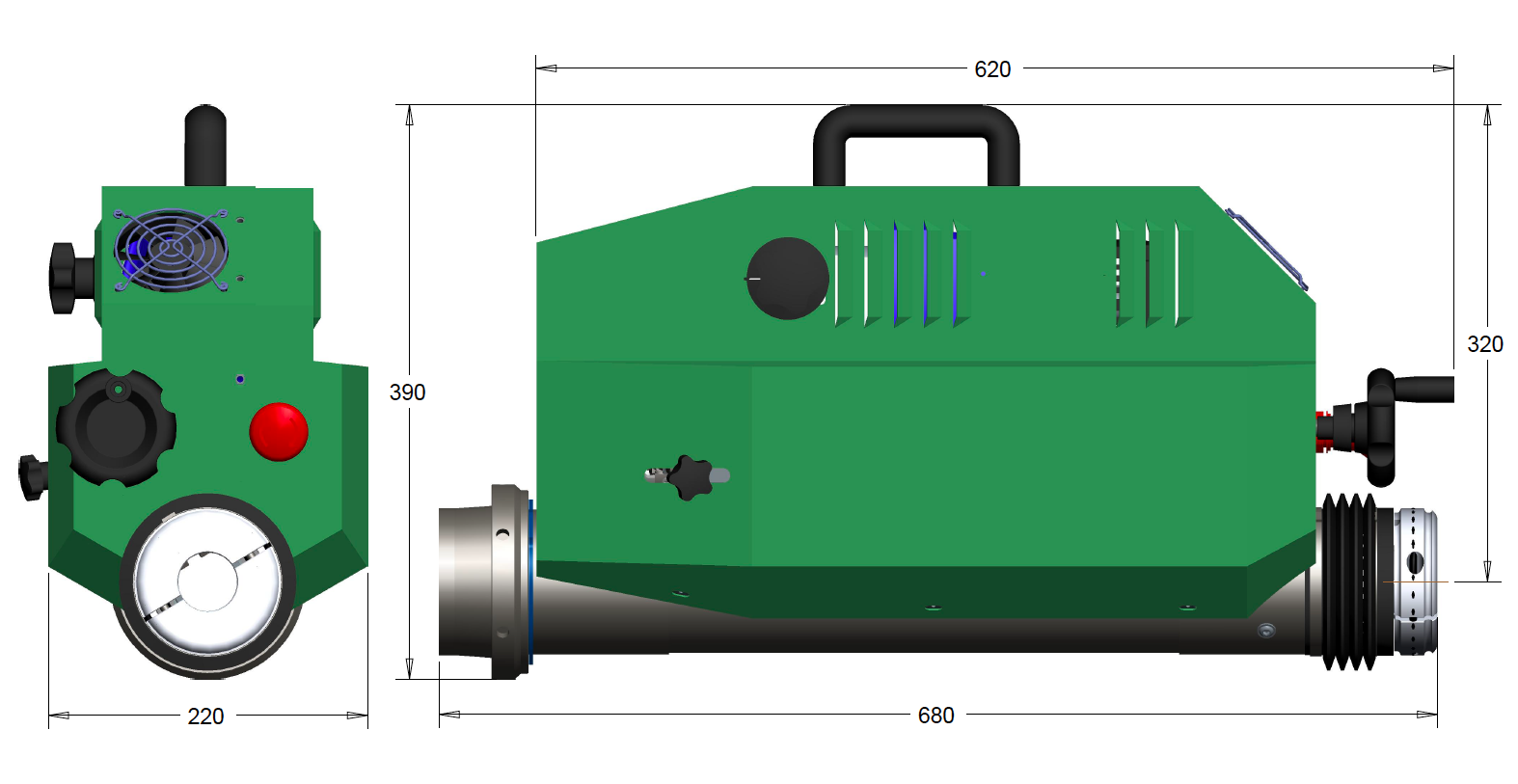

DIMENSIONS

Length: 680 mm

Width: 240 mm

Height: 380 mm

Weight central unit: 36 Kg
