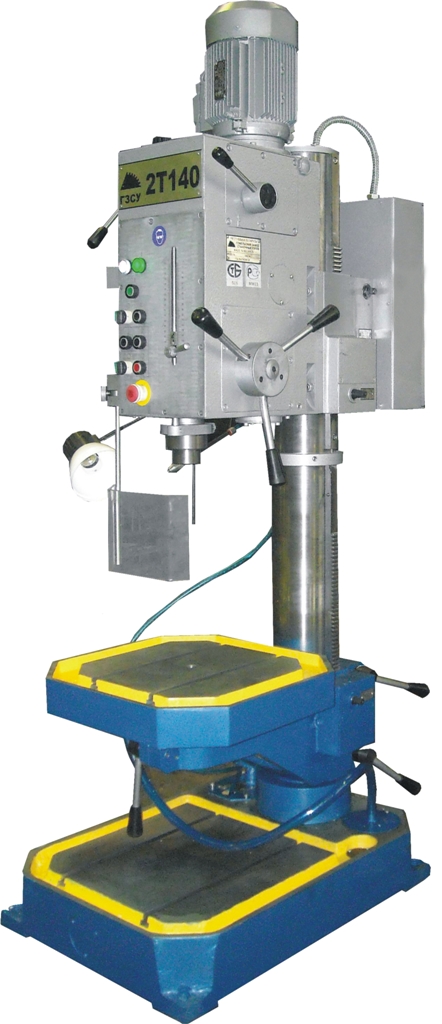

2T140 vertikalaus gręžimo staklės

Model

2Т140

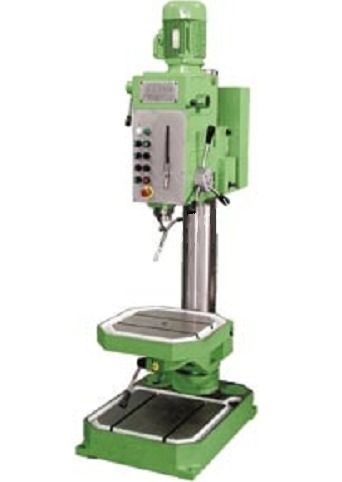

2Т125

Drill capacity, mm

40

25

Thread cutting max, mm

М24

М20

Morse taper size

№ 4

№ 3

Distance from spindle axis to column, mm

300

260

The highest movement of spindle, mm

160

160

Distance between spindle nose & tabel, mm    (min/max)

0-700

0-820

Distance between spindle nose & base plate, mm (min/max)

710-1100

940-1100

The  movement of the drilling head, mm

240

--

The greatest movement of the table, mm

500

670

The angle of rotation  the table around the column

                                                   around own axis

180º

360º

180º

---

Size of the working surface, mm

          tabel  (LxB)

          base plate (LxB)

500х500

560х560

400х500

500х525

Number of spindle speeds

8

8

Speed range, rpm.

75…1800

80…2000

Number of spindle feeds

3

3

Feed Range, mm/r

0,1; 0,2; 0,3

0,1; 0,2; 0,3

Maximum feed force, Н

11400

6000

The greatest twisting moment on the spindle, Nm

150

70

Power of main drive motor, kW

2,2

1,5

The greatest total power, kW

2,38

1,68

Dimensions, mm

       length

       width

       height

950

560

2200

770

540

2140

Weight, kg (net / gross)

575/705

450/580

Standard accessories:

-          key to control cabinet;

-          turning handle;

-          set of  transitional bushings;

-          set of wedges.

Optional accessories:

-          box-shaped table;

-          vice;

-          drill chuck

-          thread-cutting chuck
