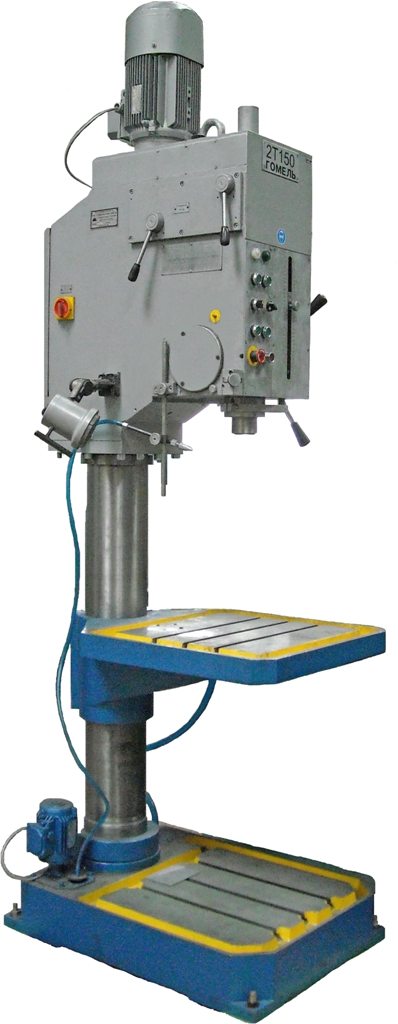

2T150 gręžimo staklės

Drill capacity, mm

50

Thread cutting max, mm

М42

Morse taper size

№5

Distance from spindle axis to column, mm

360 ± 2

The highest movement of spindle, mm

260

Distance between spindle nose & tabel, mm (min/max)

210-750

Max. distance between spindle nose & base plate, mm

1200

The greatest movement of the table, mm

540

Size of the working surface, mm

          table         (LxB)

          base plate  (LxB)

610х605

615х630

Number of spindle speeds

12

Speed range, rpm

40…1730

Number of spindle feeds

9

Feed Range, mm/r

0,06…1,5

The greatest twisting moment on the spindle, Nm

400

Maximum feed force, Н

15000

The angle of rotation  the table around the column

180º

Shutdown the feed when achieve the set  depth of processing

manual, automatic

Power of main drive motor, kW

4

The greatest total power, kW

4,18

Dimensions, mm

       length

       width

       height

960

630

2590

Weight, kg (net / gross)

850/1040

Standard accessories:

-          key to control cabinet;

-          turning handle;

-          set of  transitional bushings;

-          set of wedges.

Optional accessories:

-          vice;

-          drill chuck;

-          thread-cutting chuck.
