2K522 radialinės gręžimo staklės

Model

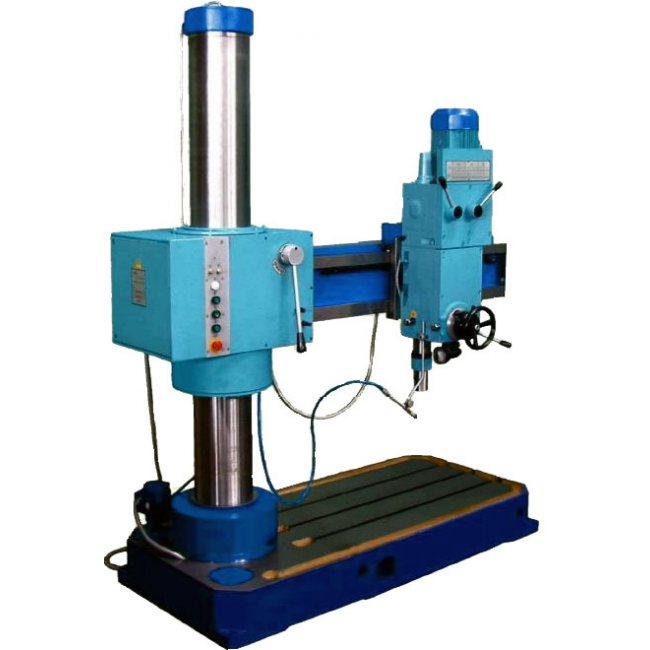

2К522-03

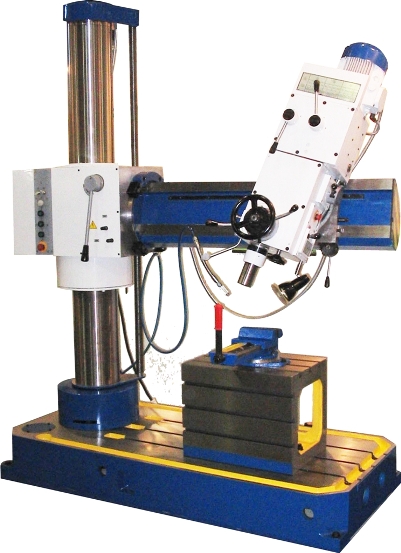

GS545

Drill capacity, mm

32

45

Thread cutting max, mm

М16

М24

Distance between spindle nose & drill base, mm (min/max)

960/-220

(-220 below the level of "floor")

1250/-60

(-60 below the level of "floor")

Radial arm swing, mm (min/max)

860/1800

940/2440

The total angle of rotation of radial arm around the column

360º

360º *

Clamp on the column

manual

The total angle of rotation of the drill head around a horizontal axis

360º

±45º

Morse taper size

No.4

Number of spindle speeds

12

12

Speed range, rpm

45-2000

Number of spindle feeds

4

Feed Range, mm/r

0,056;  0,1;  0,18;  0,32

Power of main drive motor, kW

1,5

3

The greatest total power, kW

2,43

4,28

Dimensions, mm

       length

       width

       height

1530

940

1990

1800

925

2260

Weight, kg (net / gross)

1100/1310

1480/1700

Standard accessories:

-          key to control cabinet;

-          drain plug key;

-          turning handle;

-          set of  transitional bushings;

-          set of wedges.

Optional accessories:

-          box-shaped table;

-          vice;

-          drill chuck;

-          thread-cutting chuck.
