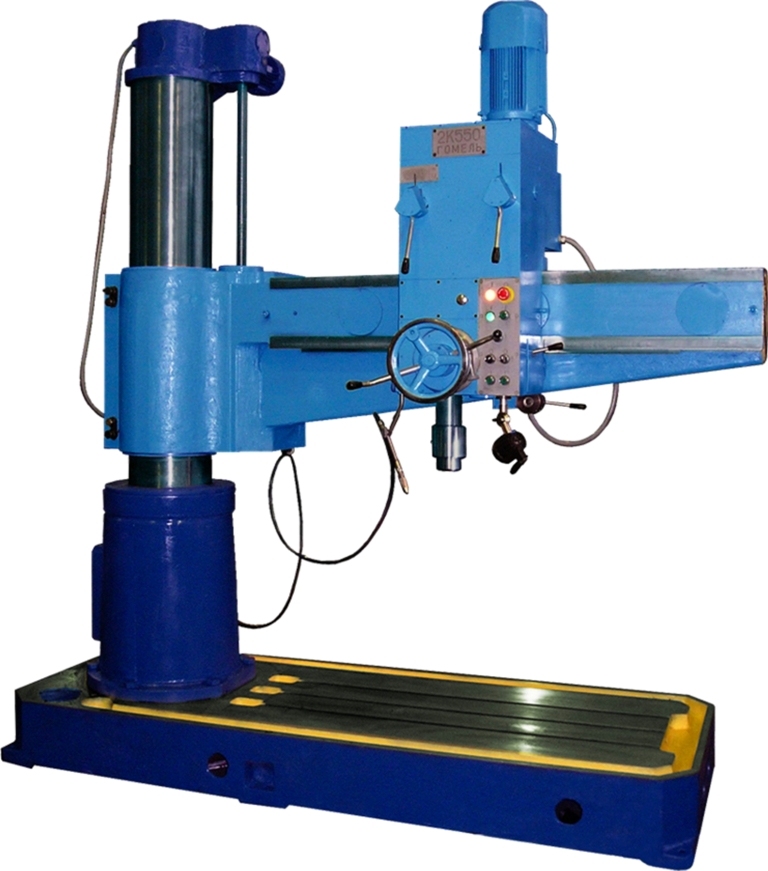

2K550V radialinės gręžimo staklės

Drill capacity, mm

55

Thread cutting max, mm

M24

Morse taper size

No.5

Radial arm swing, mm (min/max)

1050/3514

Distance between spindle nose & drill base, mm (min/max)

580/1600

Number of spindle speeds

12

Speed range, rpm

40 - 1730

Number of spindle feeds

9

Feed Range, mm/r

0,06 - 1,5

Power of main drive motor, kW

4

Dimensions, mm

       length

       width

       height

2540

900

2720

Weight, kg

3500

Standard accessories:

-          key to control cabinet;

-          drain plug key;

-          turning handle;

-          set of  transitional bushings;

-          set of wedges.

Optional accessories:

-          box-shaped table;

-          vice;

-          drill chuck;

-          thread-cutting chuck.
