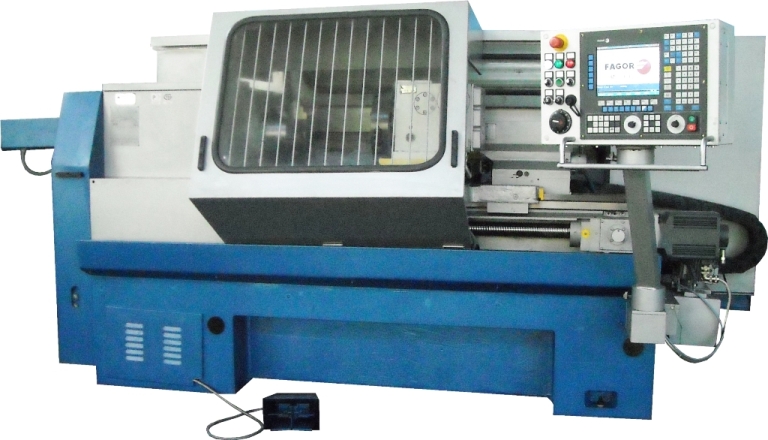

CNC GS1725F3 metalo tekinimo staklės

Produktas 5 iš 143
Zoom

CNC GS1725F3 metalo tekinimo staklės

Select Prekės kodas: CNC GS1725F3
Nebetiekiama
Sandėlyje nėra !


chuck version

bar-version

  1 Indicators workpiece

1.1 Max diameter of the workpiece installed over bed,  mm

500              -

1.2 Swing over the bed, mm

320             -

1.3 Diameter of workpiece over carriage, mm

200              -

1.4 The largest diameter rod workpiece, mm

-                52

1.5 Clamped in the chuck and extending through the hole in the spindle, mm

72               -

1.6 Maximum length of handling, mm

750       150

1.7 Height of centers over bed frame, mm

250

 2  Indicators of the tool installed on the machine

2.1 Maximum height of the tool installed in the tool post, mm

25

2.2 The number of positions the tool head

8

2.4 The diameter of  holes in  tool-head for cylindrical shank toolholders,mm



40

 3 Indicators of the main and auxiliary machinery movements

3.1 Frequency limits of the spindle, rpm

5 – 4000

3.2 Type of regulation spindle speed

stepless

3.3 Steps cut thread

0,25-40

 4  Power performance of the  machine

4.1 Maximum torque on the spindle, H˖m

     200         114

4.2 Main drive power, kW

11

4.3 Drive power of  longitudinal movement, kW

2,5

4.4 Drive power of transverse movement, kW

2,5

4.5 Coolant pump motor, kW

0,25

4.6 The greatest total power, kW

20,1

Dimensions and weight of the machine

5.1 Overall dimensions, mm, (max):

       length

       width

       height



3160 / 3240

1800

1750

5.2 Weight of the machine, kg,  (max):

3500           3550

Characteristics of electrical equipment

6.1 Mains current type

Variable,  three-phase

6.2 Current frequency, Hz

50

6.3 Voltage, B

380±38

6.4 Voltage control circuit, В

24

6.5 Circuit voltage of  local lighting, В

220

Accuracy class according to GOST  8-82

П
