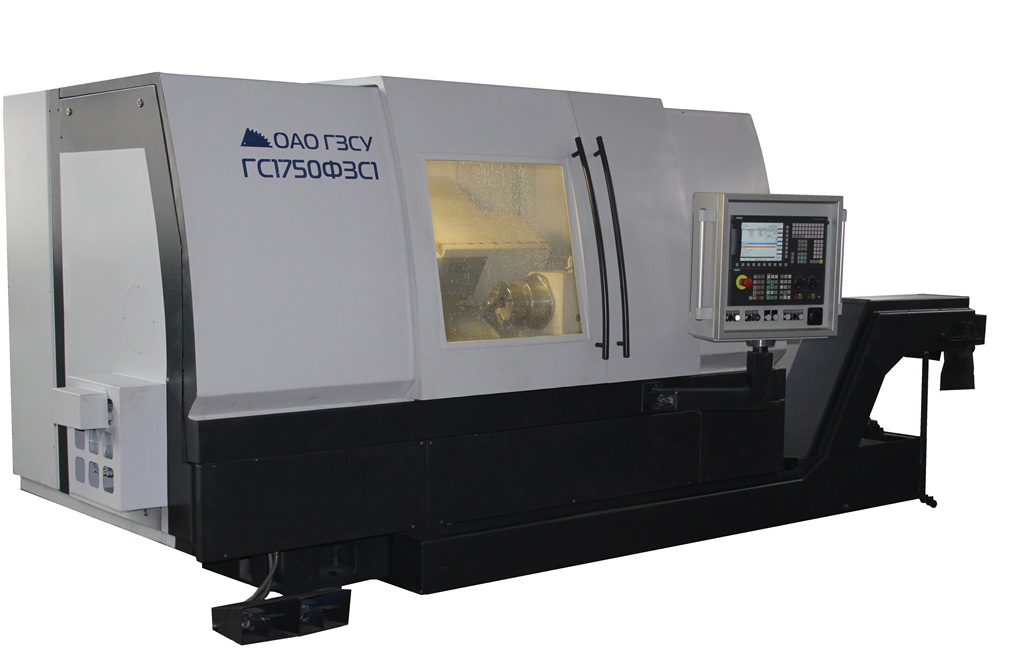

CNC tekinimo centras GS 1750

Produktas 4 iš 143
Zoom
Nebetiekiama
Sandėlyje nėra !


tailstock version

counter-spindle version

1 Indicators workpiece

1.1 Max diameter of the workpiece installed over bed,  mm

550

1.2 Swing over the bed, mm

360

1.3 Diameter of workpiece over carriage, mm

360

1.4 The largest diameter rod workpiece, mm

65

1.5 Clamped in the chuck and extending through the hole in the spindle, mm

72

1.6 Clamped in the chuck and extending through the hole in the counter-spindle, mm

-               55

1.7 Maximum length of handling, mm

500

Indicators of the tool installed on the machine

2.1 Maximum height of the tool installed in the tool post, mm

20

2.2 The number of positions the tool head

12

3 Indicators of the main and auxiliary machinery movements

3.1 Frequency limits of the spindle, rpm

20 – 4000

3.2 Frequency limits of the counter-spindle, rpm

      -          20-5000

3.3 Type of regulation spindle speed

stepless

3.4 Steps cut thread

0,25-40

Power performance of the  machine

4.1 Maximum torque on the spindle, H˖m

                                   on the counter-spindle, H˖m

300

-                     100

4.2 Main drive power, kW

17

4.3 Drive power of conter-spindle, kW

      -                17

4.4 Maximum feed force of caliper, kH

8

4.5 Total power of electric motors, kW

39.44        56.44

4.6 Total power consumption, kW

43.00        60.00

Dimensions and weight of the machine

5.1 Overall dimensions, mm, (max):

       length

       width

       height



3472           3295

1708

1952

5.2 Weight of the machine, kg,  (max):

5500

Characteristics of electrical equipment

6.1 Mains current type

Variable,  three-phase

6.2 Current frequency, Hz

50

6.3 Voltage, B

380±38

6.4 Voltage control circuit, В

24

6.5 Circuit voltage of  local lighting, В

220

Accuracy class according to GOST  8-82

П
